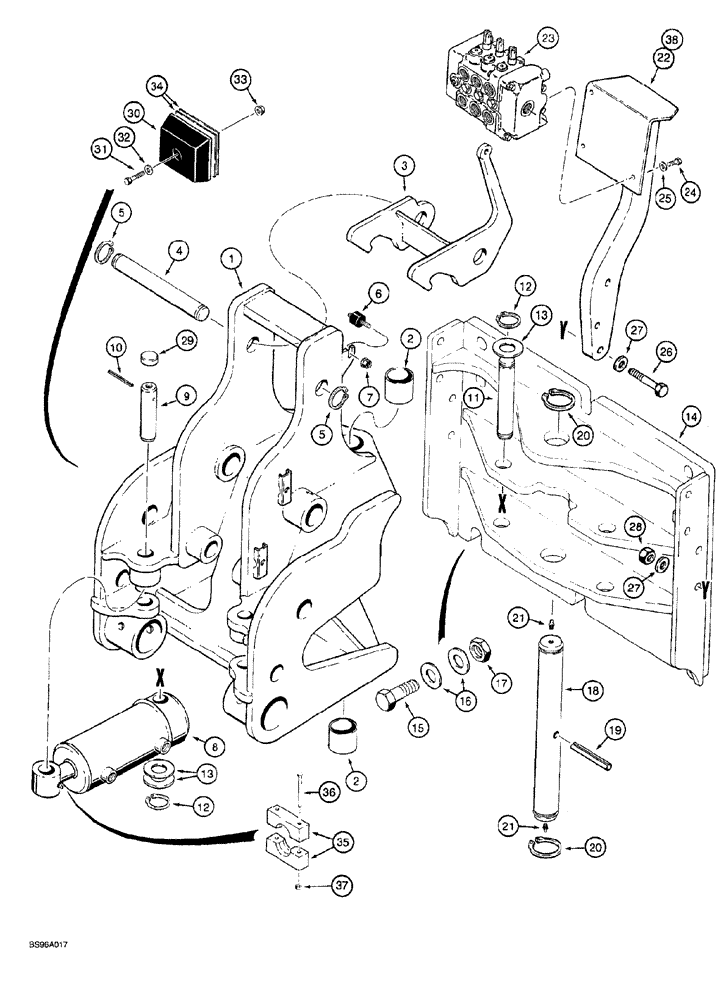

Запчасти Case 760 (09-123A) - PLOW MOUNTING BRACKET AND SWING TOWER, P.I.N. JAF0104938 AND AFTER (89) - TOOLS

1

H673803

FRAME

TOWER plow swing

1шт.

2

H433644

BUSHING

Teflon fabric lined, plow swing tower

2шт.

3

H673804

LATCH

transport, plow lift arm, see Fig. 9-125A or 9-125C for plow lift arms and mounting

1шт.

4

H434493

PIN

transport latch

1шт.

5

103-16125

SNAP RING,#125, Ext

Transport latch pin

2шт.

6

H359216

MOUNTING PARTS

INSULATOR latch

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

H673704

CYLINDER,101.6 mm ID x 327 mm L

ASSEMBLY, 4 (102) ID x 6 inch (152 mm) stroke, plow swing, parts list Fig. 8-154

2шт.

9

H436865

PIN

plow swing cylinder, rod end

2шт.

10

38-32440

PIN,3/8" x 2 1/2", Coiled

3/8" x 2 1/2", Coiled

2шт.

11

H434801

PIN

pivot, plow swing cylinder, closed end

2шт.

12

103-16125

SNAP RING,#125, Ext

Plow swing cylinder closed end pin

4шт.

13

495-81209

WASHER,1.31" ID x 2.5" OD x 0.13" Thk

flat, 1-5/16 x 2-1/2 x 5/32 inch

4-6шт.

14

H673800

PLATE

BRACKET mounting, plow

1шт.

15

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

hex, 1 NC x 3-1/2 inch

6шт.

16

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, replaces H426833

12шт.

17

232-41116

LOCK NUT,1"-8, GC

6шт.

18

H436866

PIN

plow swing

1шт.

19

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

1шт.

20

103-16200

SNAP RING,#200, Ext

Plow swing pin

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

22

123369A1

PEDESTAL

BRACKET mounting, plow control valve, replaces H675019, see Ref. 33 for bracket used with quad units

1шт.

23

H674318

VALVE

ASSEMBLY, control, plow, parts list Figs 8-165A - 8-165G

1шт.

24

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

25

H426775

WASHER

flat, special, hardened

2шт.

26

426-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

hex, 5/8 NC x 2-3/4 inch, grade 8

2шт.

27

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

28

232-41110

NUT,5/8"-11, GC

2шт.

29

41-1620

PLUG,Cup, 1 1/4", Stainless

cup, 1-1/4 inch diameter

2шт.

30

D90990

GUARD

BUMPER rubber

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

33

232-4116

NUT,3/8"-16, GC

1шт.

34

H438536

SHIM,1.50mm Thk

Bumper

1шт.

H675015

STOP

ASSEMBLY, cylinder, plow swing, mounts on right-hand swing cylinder on quad units, parts used on quad units only, Includes: Ref. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

BLOCK swing cylinder stop, includes both halves, parts used on quad units only

1шт.

36

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Parts used on quad units only

2шт.

37

232-4116

NUT,3/8"-16, GC

Parts used on quad units only

2шт.

38

H675020

PEDESTAL

BRACKET valve mounting, used on units with reversed quad option, parts used on quad units only

1шт.
