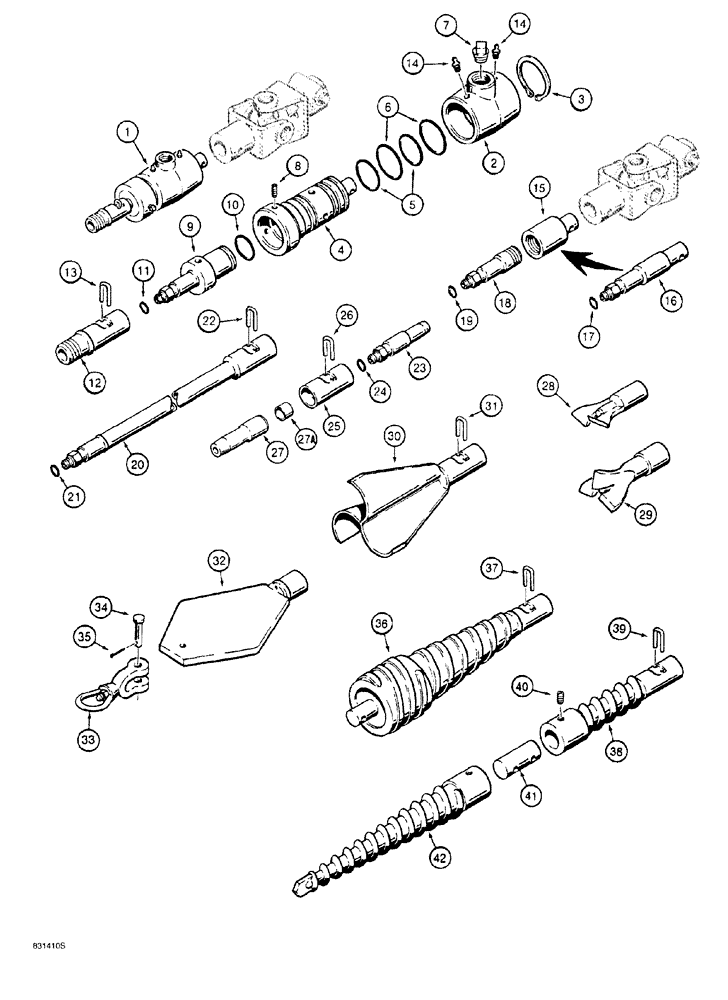

Запчасти Case 760 (09-118) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS (89) - TOOLS

1

H522367

COUPLING

ASSEMBLY, water, wet boring, attaches to U-joint on gearbox, Includes: Ref. 2 - 14

1шт.

2

H84228

RING

BODY coupler

1шт.

3

103-11225

SNAP RING,#225, Ext

Coupler

1шт.

4

H84236

COUPLING

water

1шт.

5

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2шт.

6

H749317

OIL SEAL

coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

square drive, 3/4 inch PT, used for dry boring, if used

1шт.

8

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

Cup Pt

3шт.

9

H522359

ADAPTER

COUPLER quick lock, male

1шт.

10

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

12

H522375

ADAPTER

drill stem, quick lock female to 1 inch PT

1шт.

13

H94961

STAPLE

CLIP retainer, quick lock

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

2шт.

15

H83352

ADAPTER

dry boring, 1 inch PT, Serial Range: attaches-U-joint

1шт.

16

H646901

ADAPTER

dry boring, quick lock male, Serial Range: attaches-U-joint

1шт.

18

H522383

ADAPTER

ADAPTER, 1 inch PT to quick lock male

1шт.

20

H672563

EXTENSION

STEM drill, quick lock, 5 foot long

1шт.

20

H672562

ADAPTER

STEM drill, quick lock, 10 foot long

1шт.

22

H94961

STAPLE

CLIP retainer, quick lock

1шт.

23

H434273

NIPPLE, LUBE

NIPPLE COUPLER quick lock, male

1шт.

H672594

COUPLING

ASSEMBLY, quick lock, female, Includes: Ref. 25 - 27A

1шт.

25

H434272

COUPLING

quick lock, female, no longer available, order H672594

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING shaft, O-ring seat, order H672594 coupler assembly

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT stub, order H672594 coupler assembly

1шт.

27a

H94961

STAPLE

CLIP retainer, quick lock

1шт.

28

H518837

BIT

drill, two blade, 2 inch blade dia. x 1 inch female PT

1шт.

28

H518910

BIT

drill, two blade, 3 inch blade dia. x 1 inch female PT, no longer available, order Ref. 29, H519249

1шт.

29

H519249

BIT

drill, three blade, 3 inch blade dia. x 1 inch female PT

1шт.

30

H522441

REAMER

back, quick lock female, 8 inch

1шт.

30

H522466

REAMER

back, quick lock female, 12 inch

1шт.

31

H94961

STAPLE

CLIP retainer, quick lock

1шт.

32

H519504

REAMER

fish plate, 4 inch

1шт.

32

H519652

REAMER

fish plate, 6 inch

1шт.

32

H528497

REAMER

fish plate, 8 inch

1шт.

33

H88195

FASTENER

SWIVEL reamer

1шт.

34

H32284

AXLE PIN

clevis, 3/8 x 1-3/4 inch long, special

1шт.

35

432-816

COTTER PIN,1/8" x 1"

1шт.

36

H674688

REAMER

compaction, quick lock female, 3-3/4 inch, replaces H522409

1шт.

37

H94961

STAPLE

CLIP retainer, quick lock

1шт.

38

H522433

BIT

compaction, quick lock female, 2 inch

1шт.

39

H94961

STAPLE

CLIP retainer, quick lock

1шт.

40

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

hex socket, 3/8 NC x 1-3/4 inch

2шт.

41

H85233

COUPLING

bit

1шт.

42

H84988

BIT

compaction, end, 2 inch

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
