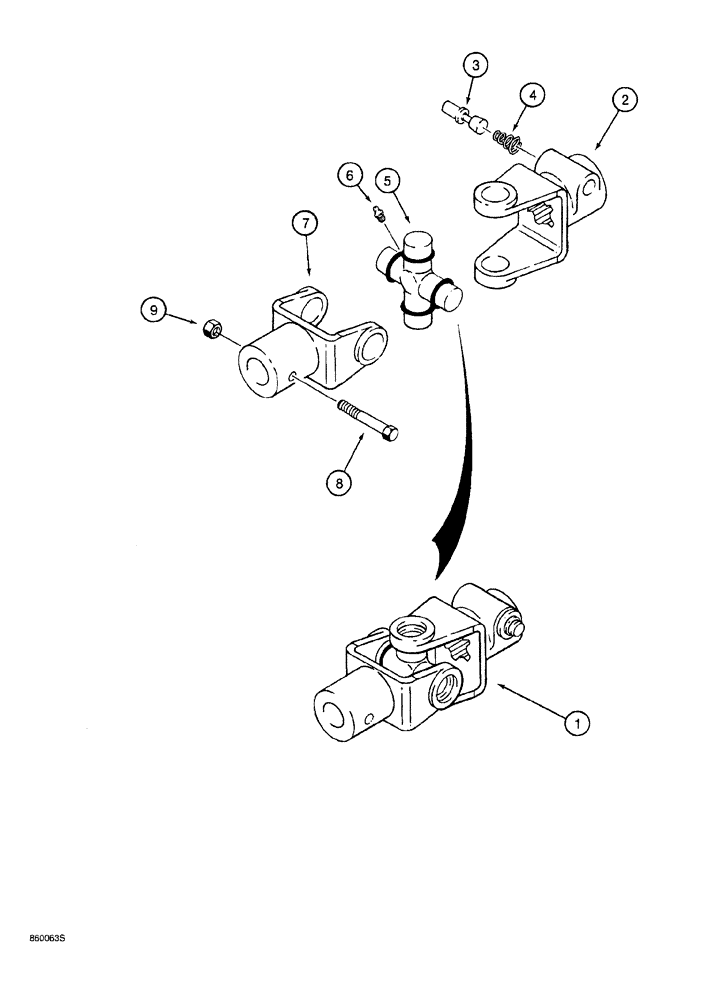

Запчасти Case 760 (09-114) - HYDRA-BORER ATTACHMENT UNIVERSAL JOINT (89) - TOOLS

1

H511113

JOINT

ASSEMBLY, Hydra-Borer attachment, no longer available, service with component parts below, Includes: Ref. 2 - 7

1шт.

H71142

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY, splined, mounts to gearbox, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE splined, Serial Range: mounts-gearbox

1шт.

H658179

SET OF PARTS

KIT universal joint retaining, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING special

1шт.

H71167

JOURNAL

CROSS ASSEMBLY, universal joint, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

CROSS universal joint

1шт.

6

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Straight, Taper

1шт.

7

H71159

YOKE

UNIVERSAL JOINT YOKE boring attachments

1шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

1шт.
