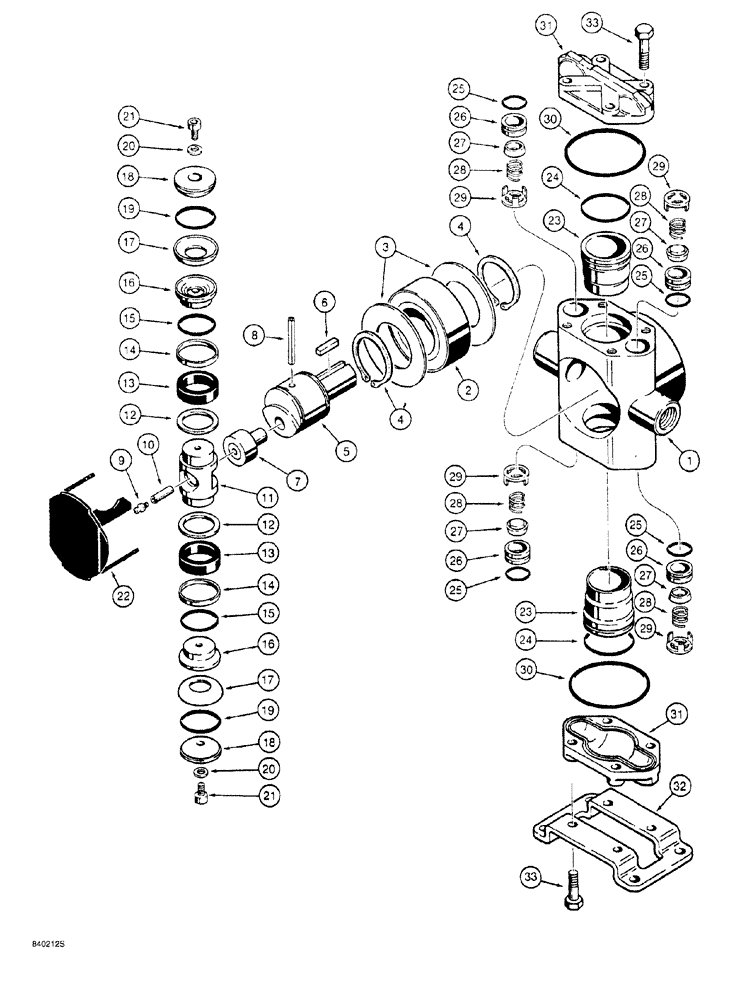

Запчасти Case 760 (09-112) - HYDRA-BORER WATER PUMP (89) - TOOLS
№
Артикул
Название
Примечание
Количество
H668442
PUMP, WATER
ASSEMBLY, Includes: Ref. 1 - 33
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING pump
1шт.
2
220734A1
BALL BEARING
ball, main
1шт.
3
220735A1
SEALING RING
RING slinger
2шт.
4
100-11177
SNAP RING,#177, Ext
Bearing
2шт.
5
220737A1
CRANKSHAFT
1шт.
6
3312AB
KEY
crankshaft
1шт.
7
NSS
NOT SOLD SEPARAT
BEARING cam
1шт.
8
138-100
LOCK PIN,3/16" x 1 1/2", Slotted
Cam bearing
1шт.
9
219-17
LUBE NIPPLE,3/16" NPTF
Cam bearing
1шт.
10
NSS
NOT SOLD SEPARAT
TUBE grease fitting extension
1шт.
11
220740A1
ROD, CONNECTING
pump
1шт.
12
N8476
OIL SEAL
RING support
2шт.
13
N8475
GUIDE
piston
2шт.
14
NSS
NOT SOLD SEPARAT
SEAL piston ring
2шт.
Part of Piston Cup Kit, P/N N8474
1шт.
15
238-5128
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
2шт.
Part of Piston Cup Kit, P/N N8474
1шт.
16
220739A1
LARGE PLATE
PLATE, LARGE piston, cup backing
2шт.
17
NSS
NOT SOLD SEPARAT
CUP piston
2шт.
Part of Piston Cup Kit, P/N N8474
1шт.
18
220738A1
DRILL
SPREADER piston cup
2шт.
19
238-5218
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
2шт.
Part of Piston Cup Kit, P/N N8474
1шт.
20
NSS
NOT SOLD SEPARAT
GASKET washer
2шт.
Part of Piston Cup Kit, P/N N8474
1шт.
21
64-48
SCREW
slotted, 1/4 NC x 1/2 inch, grade 2
2шт.
Part of Piston Cup Kit, P/N N8474
1шт.
22
N8473
BEARING COVER
bearing
1шт.
23
N8471
SLEEVE
cylinder
2шт.
24
238-5225
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
2шт.
N8472
VALVE
ASSEMBLY, pump, Includes: Ref. 25 - 29
4шт.
25
238-5019
O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro
1шт.
26
NSS
NOT SOLD SEPARAT
SEAT valve
1шт.
27
NSS
NOT SOLD SEPARAT
POPPET valve
1шт.
28
NSS
NOT SOLD SEPARAT
SPRING valve
1шт.
29
NSS
NOT SOLD SEPARAT
GUIDE valve
1шт.
31
220741A1
HEAD (CYLINDER)
2шт.
32
NSS
NOT SOLD SEPARAT
BASE mounting
1шт.
33
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
8шт.
N8474
CUP
KIT piston, Includes: Ref. 14, 15 and 19 - 21
1шт.
Выбрано товаров: 42
