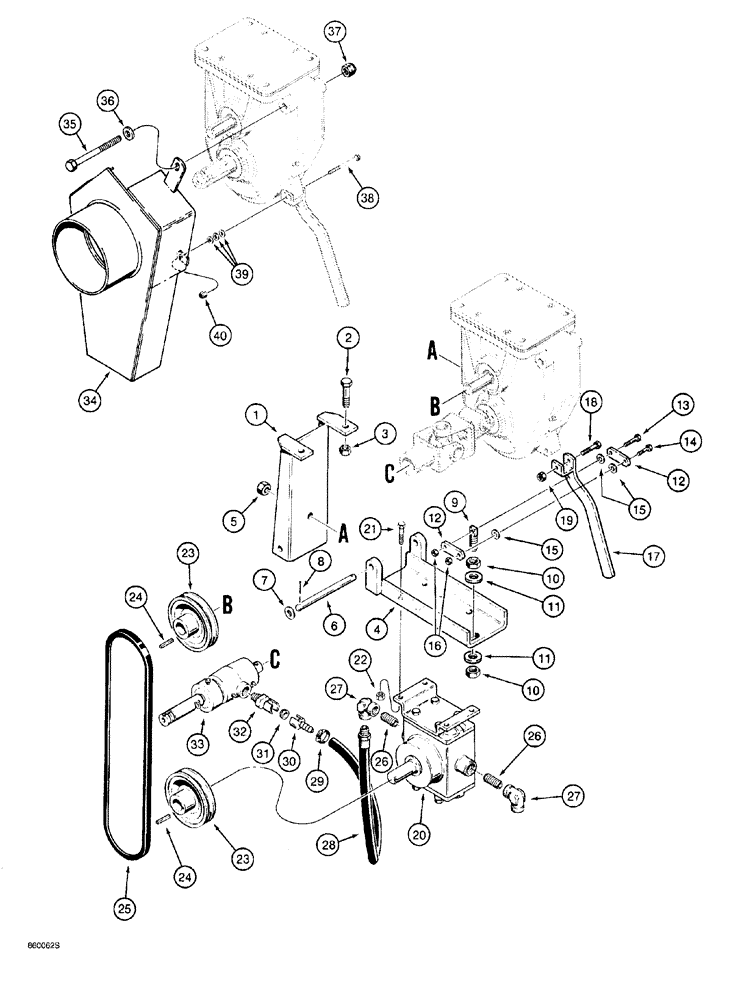

Запчасти Case 760 (09-108) - HYDRA-BORER WATER PUMP MOUNTING (89) - TOOLS

1

H519389

SUPPORT

mounting

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

3

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.

4

H519397

PUMP

BRACKET mounting

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

5

425-118

NUT,1/2"-20, G5

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

6

H87460

PIN

special, bracket mounting

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

7

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32")

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

8

432-816

COTTER PIN,1/8" x 1"

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

9

H71233

STUD

special, belt adjuster

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

10

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

11

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

12

H71241

DRAG LINK

belt adjuster

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

13

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

3шт.

Part of Water pump attaching kit, P/N H668475

1шт.

16

230-4214

LOCK NUT,1/4"-20, GA

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

17

H665943

LEVER

belt adjusting

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

19

230-4215

NUT,5/16"-18, GA

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

20

H668442

PUMP, WATER

ASSEMBLY, parts list Fig.9-112

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

Part of Water pump attaching kit, P/N H668475

1шт.

22

230-4216

LOCK NUT,3/8"-16, GA

4шт.

Part of Water pump attaching kit, P/N H668475

1шт.

H668475

ATTACHMENT

KIT water pump

1шт.

23

H87494

SHEAVE

drive and driven

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

24

T13450

KEY

square, 1/4x1-1/4 inch long, sheave

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

25

H88005

BELT

pump drive

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

26

221-1211

FITTING

straight, 3/4 PT x 1-3/8 inch

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

27

221-1378

ELBOW,90º, 3/4" NPT

ELBOW pipe, 90 degree, 3/4 inch

2шт.

Part of Water pump attaching kit, P/N H668475

1шт.

28

H78295

HOSE

36 inch (914 mm) long, water

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

29

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

30

H78303

COUPLING

quick disconnect, 3/4 inch ID hose barb

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

31

H88104

GASKET

coupler

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

32

H78311

CLAMP

COUPLER quick disconnect, 3/4 inch PT adapter

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

33

H522367

COUPLING

ASSEMBLY, water, wet boring, attaches to U-joint on gearbox, parts list Fig. 9-118

1шт.

34

H669119

BELT

GUARD, Hydra-Borer water pump

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

35

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

hex, 1/2 NC x 4-3/4 inch

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

36

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

37

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

38

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

39

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

40

230-4215

NUT,5/16"-18, GA

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.

H668475

ATTACHMENT

KIT water pump attaching, Includes: Ref. 1, 4 - 22, 23 - 32 and 34 - 40

1шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Part of Water pump attaching kit, P/N H668475

1шт.
