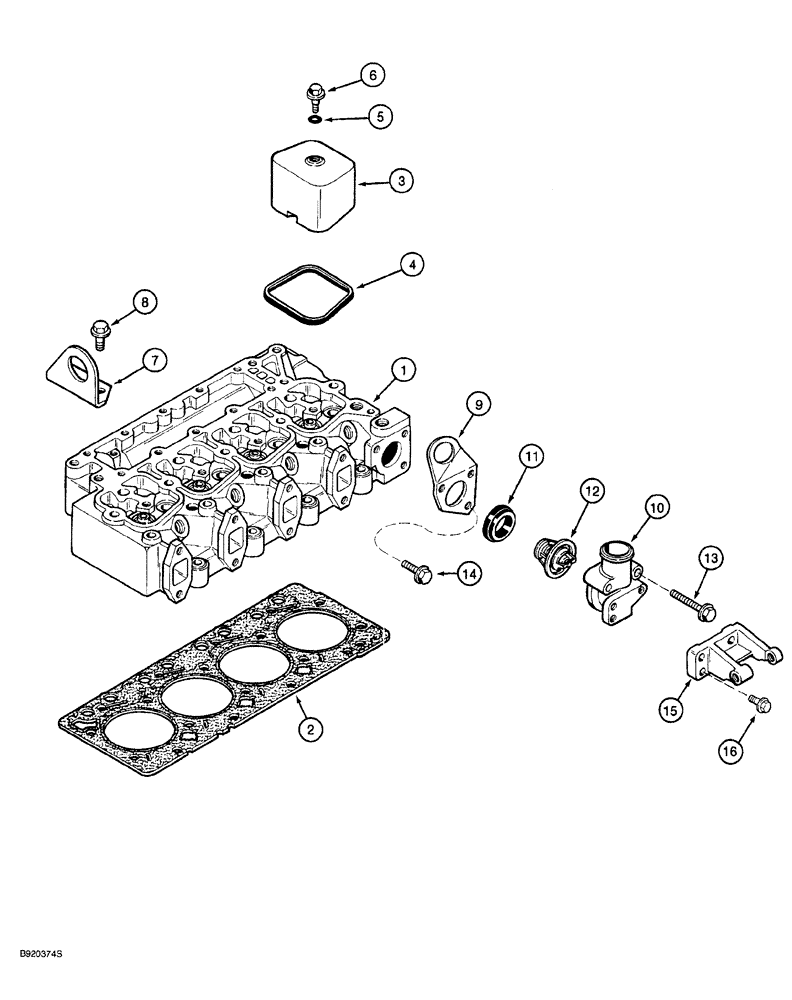

Запчасти Case 760 (02-026) - CYLINDER HEAD AND COVERS, 4-390 ENGINE (10) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, see Fig. 2-28 for part number

1шт.

2

J282999

GASKET

head, standard, replaces J915726 and J918302

1шт.

2

J921395

CYLINDER HEAD GASKET

head, 2 notches, 0.25 mm overthick, replaces J915727 and J917355

1шт.

2

J921397

GASKET

head, 3 notches, 0.050 mm overthick, replaces J915728 and J915721

1шт.

3

J902604

COVER

rocker arm

4шт.

4

J902666

GASKET

rocker arm cover

4шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, and housing, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

thermostat housing, replaces J920020

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, replaces J910713, thermostat and housing

1шт.

16

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, thermostat and housing

3шт.
