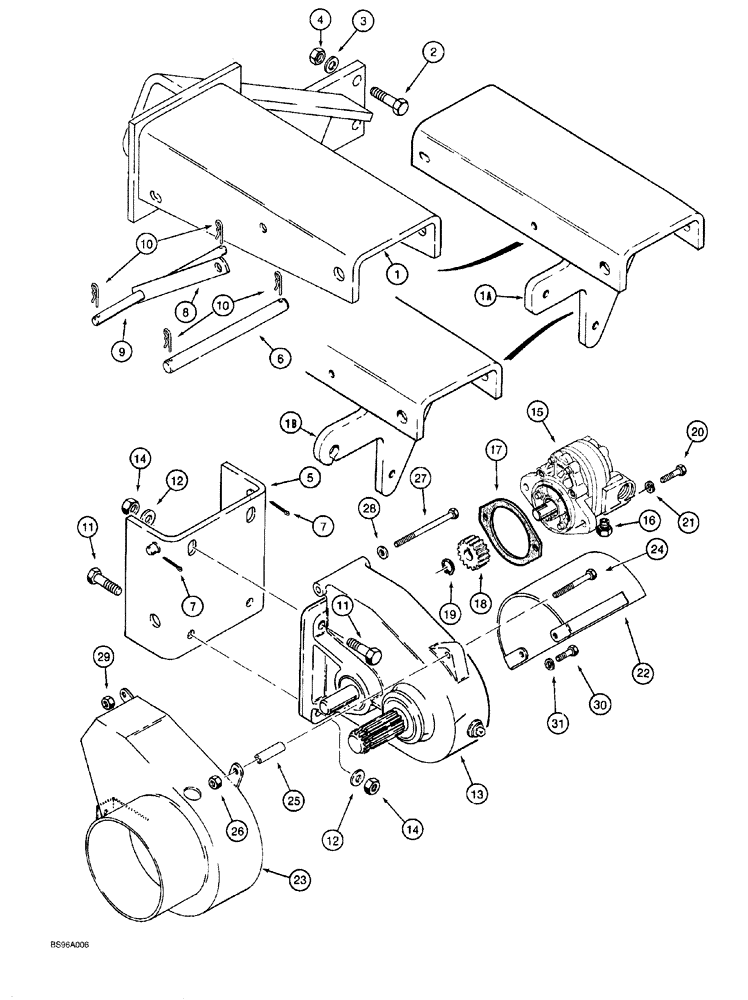

Запчасти Case 760 (09-104) - HYDRA-BORER AND GEARBOX MOUNTING (89) - TOOLS

1

H672616

FRAME

Hydra-Borer, used on models without quad option

1шт.

1a

H672927

ANCHOR

FRAME Hydra-Borer, used on models with quad option, no longer available, order Ref. 1B, 138645A1

1шт.

1b

138645A1

ANCHOR

FRAME Hydra-Borer, used on models with quad option

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3 used on models with quad option

3-4шт.

3

495-31025

WASHER,3/16"

flat, 1/4 x 9/16 x 3/64 inch, hardened, 3 used on models with quad option

3-4шт.

4

232-4118

NUT,1/2"-13, GC

3 used on models with quad option

3-4шт.

5

H672537

MOUNTING PARTS

BRACKET Hydra-Borer gearbox

1шт.

6

H434278

SHAFT

pivot

1шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

8

H434194

LINK

support, mounting bracket

2шт.

9

H175414

PIN

locking

1шт.

10

S120261

PIN

hair, used in mounting bracket pivot shaft and locking pin, replaces A70250

4шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

13

H666875

GEARBOX ASSY

Hydra-Borer, parts list Fig. 9-106

1шт.

14

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

4шт.

15

H654814

MOTOR

ASSEMBLY, hydraulic, Hydra-Borer, parts list Fig. 8-126

1шт.

16

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCER pipe, 1/4 male x 1/8 inch female

1шт.

17

1342757C1

GASKET

motor, replaces H32375 gasket

1шт.

18

H426023

SPUR

GEAR input pinion, included with H666875 gearbox

1шт.

19

100-1168

SNAP RING,#68, Ext

Gear

2шт.

20

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

hex, 7/16 NC x 1-1/4 inch

2шт.

21

492-11044

LOCK WASHER,7/16"

2шт.

22

H645838

SHIELD

Hydra-Borer shaft

1шт.

23

H645788

GUARD

Hydra-Borer

1шт.

24

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

25

H217174

SPACER

, Serial Range: gearbox-guard

1шт.

26

230-4215

NUT,5/16"-18, GA

1шт.

27

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

1шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

29

230-4216

LOCK NUT,3/8"-16, GA

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Included with H666875 gearbox

2шт.

31

492-11038

LOCK WASHER,3/8"

Included with H666875 gearbox

2шт.
