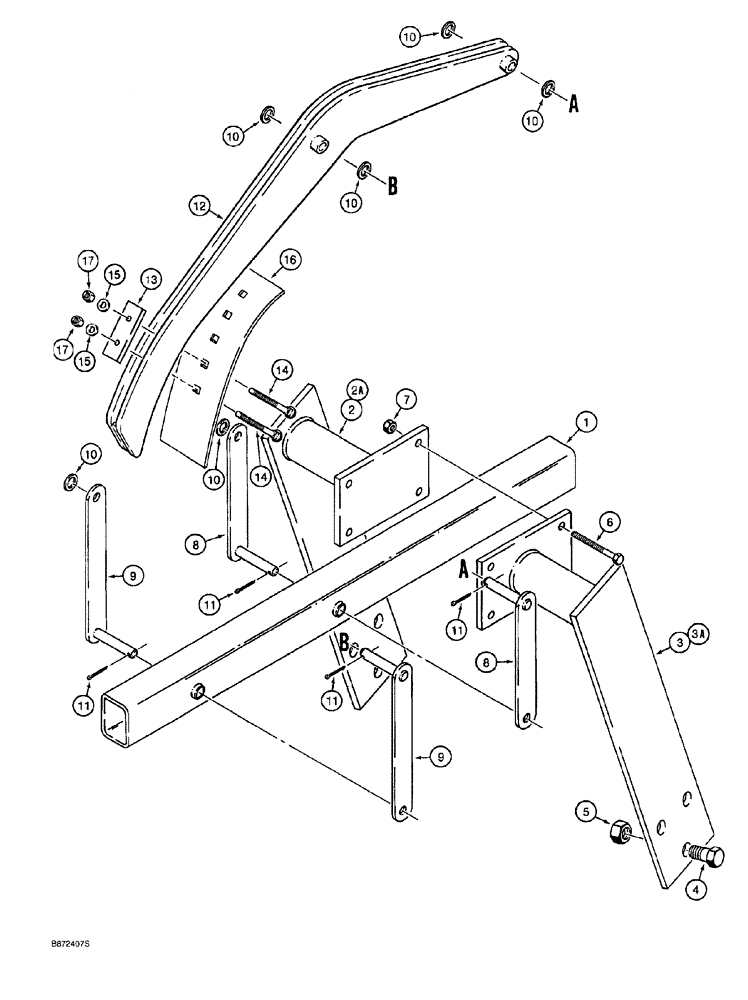

Запчасти Case 760 (09-094) - CRUMBER, DIGGING CHAIN GUARD, AND MOUNTING, MODELS WITH LONG CRUMBER BLADE BRACKET, ITEM 12 (89) - TOOLS

1

H672169

TUBE,190, 398 mm L

BOOM crumber, 4 foot long, if used

1шт.

1

H672170

TUBE,1598 mm L

BOOM crumber, 5 foot long, if used

1шт.

1

H672171

TUBE,1928 mm L

BOOM crumber, 6 foot long, if used

1шт.

1

H672172

TUBE,2258 mm L

BOOM crumber, 7 foot long, if used

1шт.

1

H434220

TUBE,1268 mm L

GUARD digging chain, 4 foot long, units without crumber, if used

1шт.

1

H434221

TUBE,1598 mm L

GUARD digging chain, 5 foot long, units without crumber, if used

1шт.

1

H434222

TUBE,1928 mm L

GUARD digging chain, 6 foot long, units without crumber, if used

1шт.

1

H434223

TUBE,2258 mm L

GUARD digging chain, 7 foot long, units without crumber, if used

1шт.

2

H672234

SUPPORT

crumber mounting, left-hand, trenchers with dual (internal) boom lift cylinders

1шт.

2a

H672872

PLATE

BRACKET crumber mounting, left-hand, trenchers with single (external) boom lift cylinder

1шт.

3

H672235

SUPPORT

crumber mounting, right-hand, trenchers with dual (internal) boom lift cylinders

1шт.

3a

H672871

PLATE

BRACKET crumber mounting, right-hand, trenchers with single (external) boom lift cylinder

1шт.

4

113-922

BOLT,Hex, 1" - 8 x 2", Gr 5, Full Thd

6шт.

5

232-41116

LOCK NUT,1"-8, GC

6шт.

6

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

7

232-41110

NUT,5/8"-11, GC

4шт.

8

H673072

LINK

boom to crumber, short

2шт.

9

H672721

LINK

boom to crumber, long

2шт.

10

495-11081

WASHER,3/4", SAE

6шт.

11

432-1220

COTTER PIN,3/16" x 1 1/4"

4шт.

12

H673071

ARM

BRACKET crumber blade

1шт.

13

H309450

SPACER

PLATE, Serial Range: bracket-blade

1шт.

14

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

carriage, 1/2 NC x 4 inch, grade 2

2шт.

15

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32")

2шт.

16

H127480

BLADE

crumber, 6 inch wide, if used

1шт.

16

H60087

BLADE

crumber, 8 inch width, if used

1шт.

16

H60103

BLADE

crumber, 10 inch wide, if used

1шт.

16

H60129

BLADE

crumber, 11 inch wide, if used

1шт.

16

H60145

BLADE

crumber, 13 inch wide, if used

1шт.

16

H60160

BLADE

crumber, 16 inch wide, if used

1шт.

16

H60186

BLADE

crumber, 18 inch wide, if used

1шт.

17

232-4118

NUT,1/2"-13, GC

2шт.
