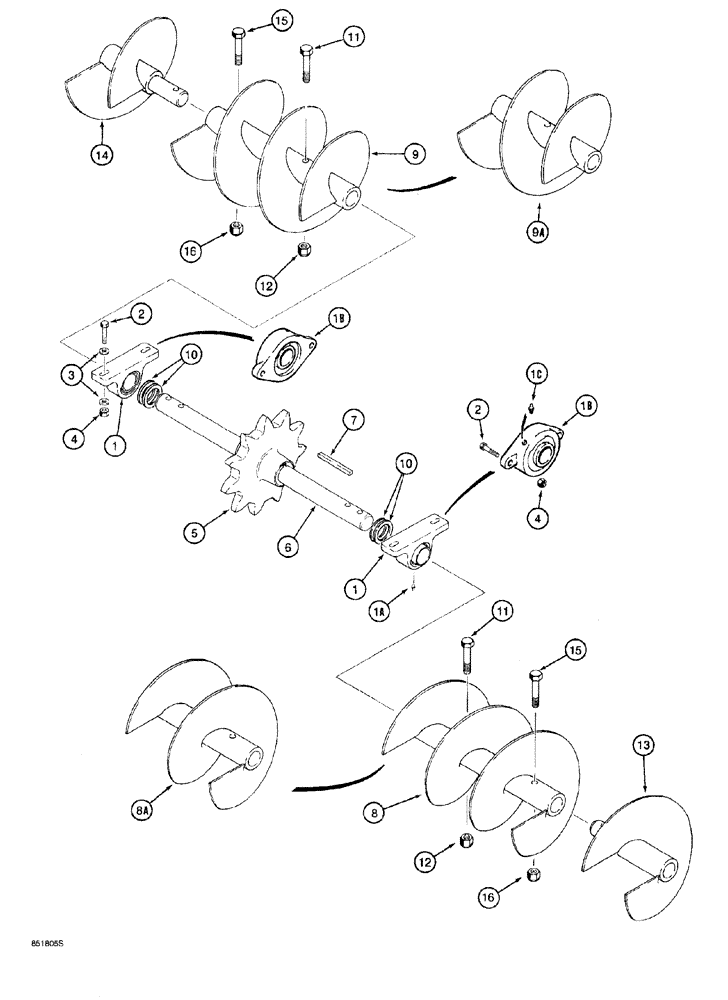

Запчасти Case 760 (09-090) - AUGER AND MOUNTING (89) - TOOLS

1

H759114

BEARING

auger, trenchers with dual (internal) boom lift cylinders, Includes: Ref. 1A

2шт.

1a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1b

H759120

BEARING

auger, trenchers with single (external) boom lift cylinder, Includes: Ref. 1C

2шт.

1c

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

2

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened, used with H759114 bearing only

8шт.

4

232-41110

NUT,5/8"-11, GC

4шт.

5

138936A1

SPROCKET ASSY.

auger drive, replaces H434598 sprocket

1шт.

6

H434597

SHAFT

auger

1шт.

7

H433528

KEY

shaft

1шт.

8

H672056

AUGER

spoil removal, long, right-hand, used on models without quad option

1шт.

8a

H673128

AUGER

spoil removal, short, right-hand, used on models with quad option

1шт.

9

H672057

AUGER

spoil removal, long, left-hand, used on models without quad option

1шт.

9a

H673129

AUGER

spoil removal, short, left-hand, used on models with quad option

1шт.

10

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

flat, 2-1/16 x 3x1/8 inch, trenchers with dual (internal) boom lift cylinders

4шт.

11

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch

2шт.

12

232-41112

NUT,3/4"-10, GC

2шт.

13

H672396

AUGER

spoil removal, right-hand, extension, used with Ref. 8, if used

1шт.

14

H672395

AUGER

spoil removal, left-hand, extension, used with Ref. 9, if used

1шт.

15

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch

2шт.

16

232-41112

NUT,3/4"-10, GC

If used

2шт.

H759119

BEARING CARRIER

severe duty, service replacement for H759114 bearing, Ref. 1

2шт.
