Запчасти Case 760 (09-084) - ANTI-BACKFLEX DIGGING CHAINS, 110,000 POUND CHAINLINE (89) - TOOLS

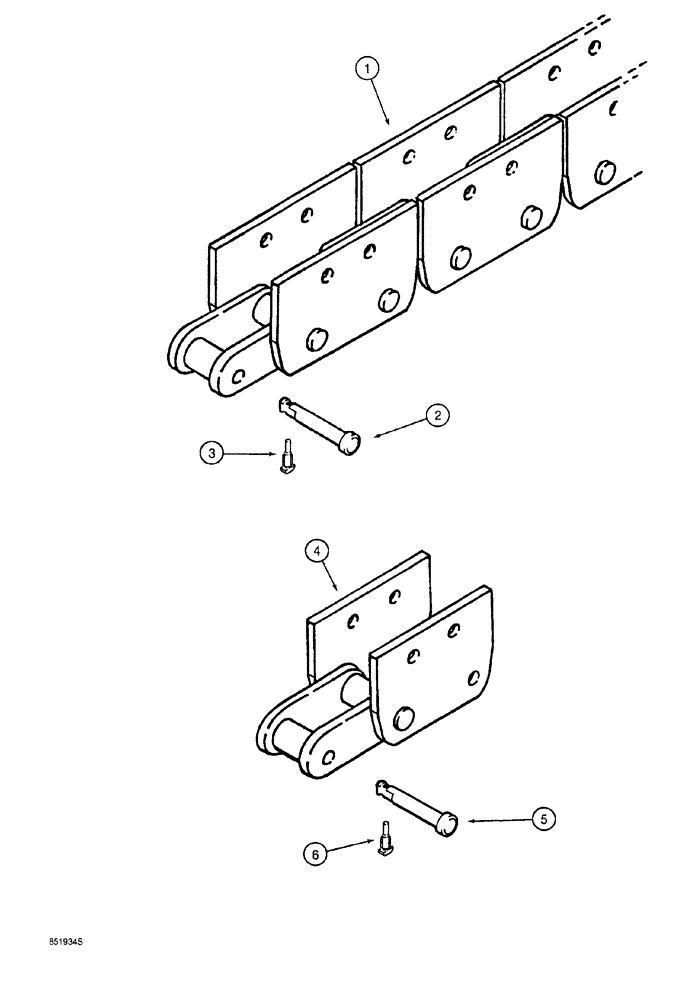

Схема запчастей Case 760 - (09-084) - ANTI-BACKFLEX DIGGING CHAINS, 110,000 POUND CHAINLINE (89) - TOOLS
1
3
6
5
2
4

№

Артикул

Название

Примечание

Количество

H644203

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 54 pitches, for 4 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672444

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 8 pitches, for 4 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 54 pitches, included with H644203 chain assembly, for 4 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 8 pitches, included with H672444 chain assembly, for 4 foot digging depth boom

1шт.

2

H227868

PIN

connector, special, for 4 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP pin retaining, chain, for 4 foot digging depth boom

1шт.

H644203

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 54 pitches, for 5 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672444

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 8 pitches, for 5 foot digging depth boom, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 54 pitches, included with H644203 chain assembly, for 5 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 8 pitches, included with H672444 chain assembly, for 5 foot digging depth boom

1шт.

2

H227868

PIN

connector, special, for 5 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP pin retaining, chain, for 5 foot digging depth boom

1шт.

H644203

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 54 pitches, for 6 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672444

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 8 pitches, for 6 foot digging depth boom, Includes: Ref. 1 - 3

3шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 54 pitches, included with H644203 chain assembly, for 6 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 8 pitches, included with H672444 chain assembly, for 6 foot digging depth boom

1шт.

2

H227868

PIN

connector, special, for 6 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP pin retaining, chain, for 6 foot digging depth boom

1шт.

H644203

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 54 pitches, for 7 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672444

CHAIN (AG)

ASSEMBLY, digging, anti-backflex, 8 pitches, for 7 foot digging depth boom, Includes: Ref. 1 - 3

4шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 54 pitches, included with H644203 chain assembly, for 7 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, anti-backflex, 8 pitches, included with H672444 chain assembly, for 7 foot digging depth boom

1шт.

2

H227868

PIN

connector, special, for 7 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP pin retaining, chain, for 7 foot digging depth boom

1шт.

H644229

CHAIN (AG)

ASSEMBLY, repair section, anti-backflex, 2 pitches, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN repair section, anti-backflex, 2 pitches

1шт.

5

H227868

PIN

connector, special, chain repair section

1шт.

6

H234195

AXLE PIN

CLAMP pin retaining, chain repair section

1шт.

Выбрано товаров: 28
