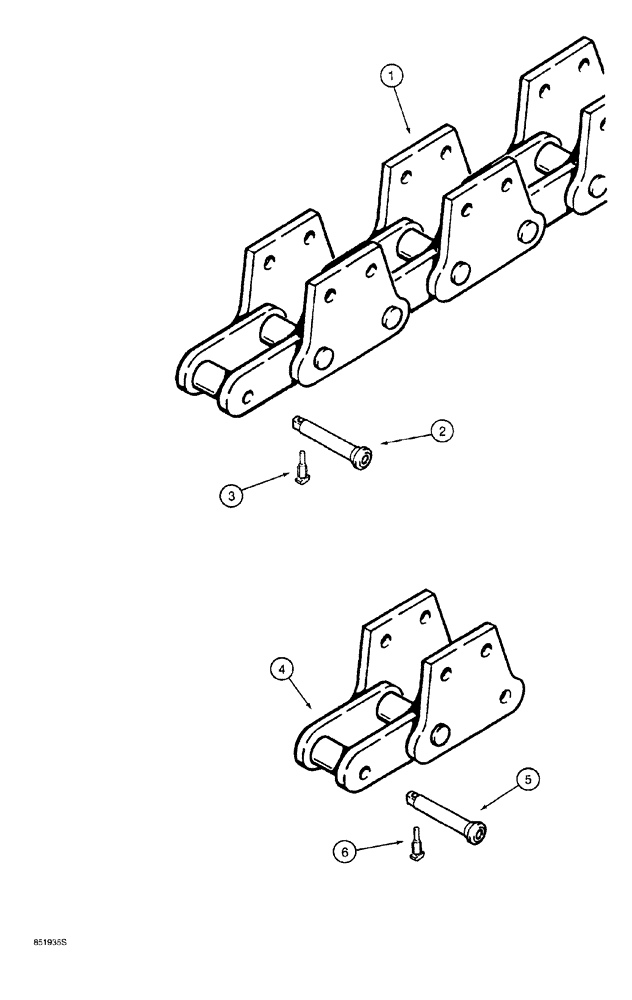

Запчасти Case 760 (09-080) - STANDARD DIGGING CHAINS, 80,000 POUND CHAINLINE, FOR 4 DIGGING DEPTH BOOM (89) - TOOLS

H672440

CHAIN (AG)

ASSEMBLY, digging, standard, 62 pitches, for 4 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 62 pitches, for 4 foot digging depth boom

1шт.

2

H434008

PIN

connector, special, for 4 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP, retaining, chain, for 4 foot digging depth boom

1шт.

H672440

CHAIN (AG)

ASSEMBLY, digging, standard, 62 pitches, for 5 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672441

CHAIN (AG)

ASSEMBLY, digging, standard, 8 pitches, for 5 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 62 pitches, included with H672440 assembly, for 5 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 8 pitches, included with H672441 assembly, for 5 foot digging depth boom

1шт.

2

H434008

PIN

connector, special, for 5 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP , for 5 foot digging depth boom

1шт.

H672440

CHAIN (AG)

ASSEMBLY, digging, standard, 62 pitches, for 6 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672441

CHAIN (AG)

ASSEMBLY, digging, standard, 8 pitches, for 6 foot digging depth boom, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 62 pitches, included with H672440 assembly, for 6 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 8 pitches, included with H672441 assembly, for 6 foot digging depth boom

1шт.

2

H434008

PIN

connector, special, for 6 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP pin retaining, chain, for 6 foot digging depth boom

1шт.

H672440

CHAIN (AG)

ASSEMBLY, digging, standard, 62 pitches, for 7 foot digging depth boom, Includes: Ref. 1 - 3

1шт.

H672441

CHAIN (AG)

ASSEMBLY, digging, standard, 8 pitches, for 7 foot digging depth boom, Includes: Ref. 1 - 3

3шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 62 pitches, included with H672440 assembly, for 7 foot digging depth boom

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN digging, standard, 8 pitches, included with H672441 assembly, for 7 foot digging depth boom

1шт.

2

H434008

PIN

connector, special, for 7 foot digging depth boom

1шт.

3

H234195

AXLE PIN

CLAMP, retaining, chain, for 7 foot digging depth boom

1шт.

H672442

CHAIN (AG)

ASSEMBLY, repair section, 2 pitches, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN, repair section, 2 pitches

1шт.

5

H434008

PIN

connector, special, chain repair section

2шт.

6

H234195

AXLE PIN

CLAMP pin retaining, chain repair section

2шт.
