Запчасти Case 760 (02-024) - OIL PUMP AND OIL PAN, 4-390 ENGINE (10) - ENGINE

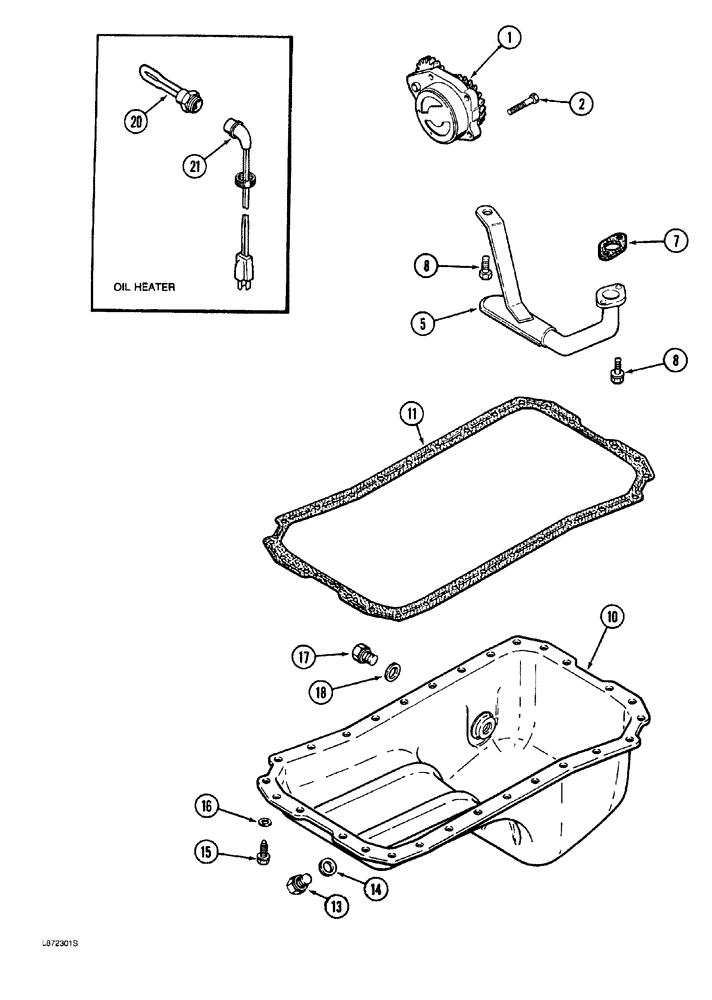

Схема запчастей Case 760 - (02-024) - OIL PUMP AND OIL PAN, 4-390 ENGINE (10) - ENGINE
1
8
2
11
5
21
7
10
13
14
18
17
16
8
15
20

Артикул

Название

Примечание

Количество

1

J926202

PUMP, ENGINE OIL

new, replaces J914005 and J918211

1шт.

JR926202

PUMP

oil, remanufactured, North America only, replaces JR918211 remanufactured pump

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only; Replaces JC918211

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

5

J905205

TUBE,1" OD

suction, oil

1шт.

7

J914383

GASKET

mounting, oil suction tube

1шт.

When kit is ordered, J902425 washer, Ref. 18,must also be ordered

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET oil pan

3шт.

When kit is ordered, J902425 washer, Ref. 18,must also be ordered

1шт.

13

J924147

PLUG,M18 x 1.5

hex magnetic, special, 18 mm - 15, replaces J911638

1шт.

14

J920773

SEALING WASHER

drain plug, replaces J900216

1шт.

When kit is ordered, J902425 washer, Ref. 18,must also be ordered

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

28шт.

16

J910266

LOCK WASHER

spring, Belleville, replaces J907537

28шт.

17

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 15, replaces J904386

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

A77673

GASKET KIT

oil pan, replaces A77482

1шт.

When kit is ordered, J902425 washer, Ref. 18,must also be ordered

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 20 and 21

1шт.

When kit is ordered, J902425 washer, Ref. 18,must also be ordered

1шт.

20

NSS

NOT SOLD SEPARAT

ELEMENT heater, engine oil

1шт.

21

J905113

CABLE

engine block heater, 6 feet long, oil

1шт.

Выбрано товаров: 25
