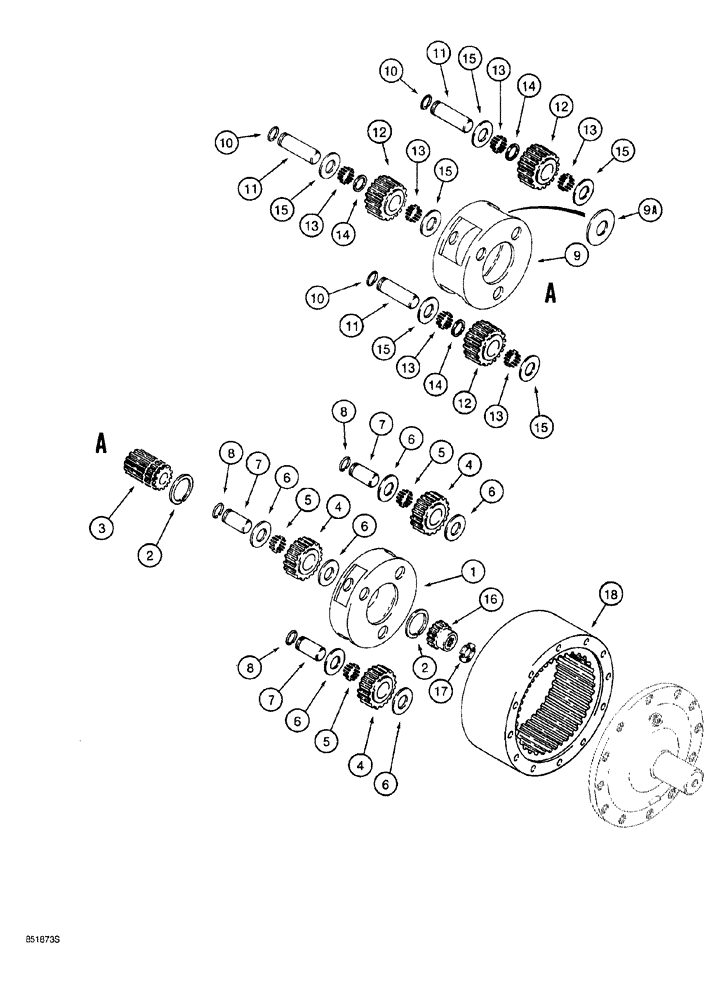

Запчасти Case 760 (09-078) - TRENCHER DRIVE PLANETARY (89) - TOOLS

H674394

GEAR WHEEL

PLANETARY ASSEMBLY, trencher drive, Includes: Ref. 1 - 18

1шт.

See Fig. 9-58 or 9-60 for planetary cover and mounting

1шт.

N13354

CARRIER

ASSEMBLY, planetary, primary, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER planetary, primary

1шт.

2

N13361

RING, SNAP

RING SNAP sun gear

2шт.

3

N13364

GEAR

sun, planetary

1шт.

4

N13363

GEAR

planetary

3шт.

5

L33375

ROLLER

BEARING needle, planetary gear

48шт.

6

N13359

WASHER

thrust, planetary gear

6шт.

7

N13362

SHAFT

pinion

3шт.

8

A37643

SNAP RING,#102, .962", Ext

snap, pinion shaft

3шт.

N13353

CARRIER

ASSEMBLY planetary, secondary, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER planetary, secondary

1шт.

9a

N13731

WASHER

thrust, carrier, special

1шт.

10

A37643

SNAP RING,#102, .962", Ext

snap, pinion shaft

3шт.

11

N13357

SHAFT

pinion

3шт.

12

N13358

GEAR

planetary

3шт.

13

A55854

PIN,6.35mm OD x 19.05mm L

planetary gear

96шт.

14

N13360

SEPARATOR

needle bearing

3шт.

15

N13359

WASHER

thrust, planetary gear

6шт.

16

H438575

SUN GEAR

planetary

1шт.

17

N6363

WASHER

thrust, sun gear

1шт.

18

N13355

GEAR

ring, planetary

1шт.
