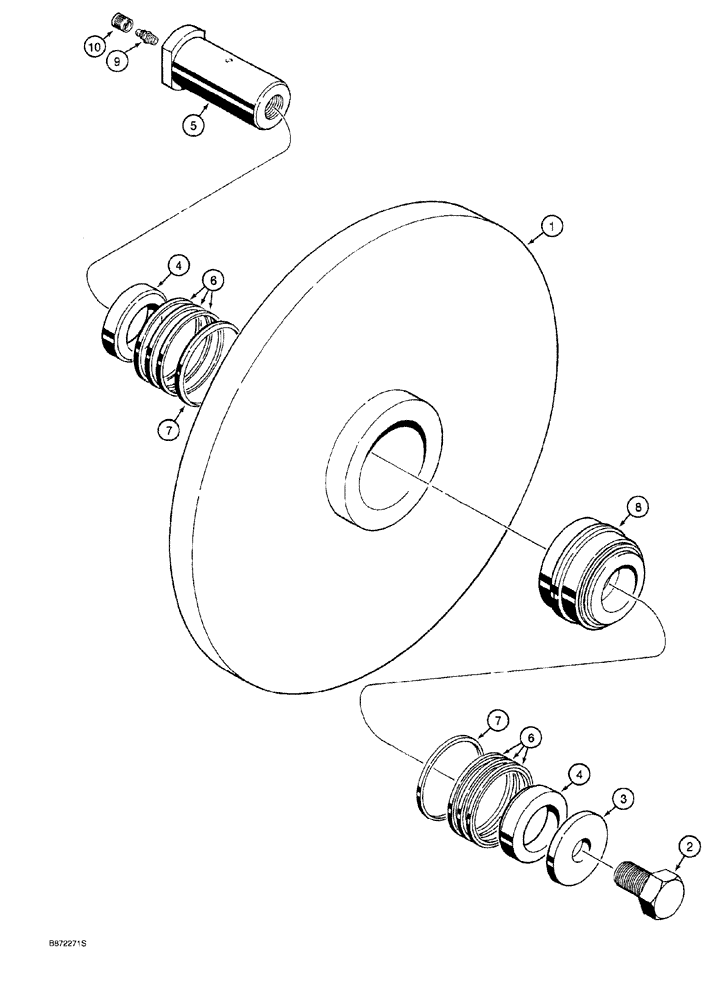

Запчасти Case 760 (09-074) - TRENCHER ROCK BOOM ROLLER (89) - TOOLS

H672962

ROLLER

ASSEMBLY, rock boom end, no longer available, order component parts, Refs. 1 thru 8, Includes: Ref. 1 - 8

1шт.

1

H672961

SHIFTER ROLLER

rock boom end

1шт.

2

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex, 3/4 NC x 1-1/2 inch

1шт.

3

139027A1

WASHER,19.45mm ID x 76.2mm OD x 13mm Thk

flat, special

1шт.

4

H435227

SPACER

bearing, boom end

2шт.

5

H435228

PIN

special, boom end roller

1шт.

6

H435218

SEAL

boom end roller

6шт.

7

H435226

SPACER

SPACER seal, rock boom end

2шт.

8

H759118

BEARING ASSY,52.4mm ID x 92.1mm OD x 54.75mm W

tapered roller

1шт.

9

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

grease, straight, with cap, 1/8 PT x 1 inch

1шт.

10

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

grease, straight, with cap, 1/8 PT x 1 inch, no longer available, order 219-66

1шт.
