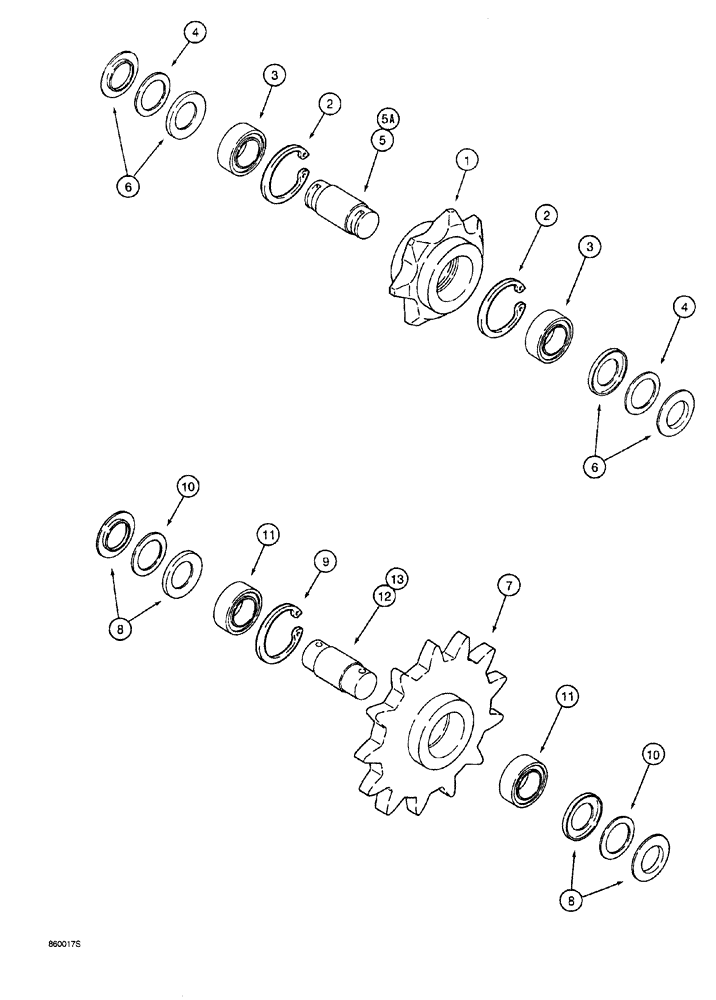

Запчасти Case 760 (09-068) - IDLER AND BOOM END SPROCKETS (89) - TOOLS

1

H433989

DRIVE SPROCKET

idler, 8T, 1 used with 4 foot and 5 foot booms, 2 used with 6 foot and 7 foot booms

1-2шт.

2

100-21393

SNAP RING,3.938", Int, #393

Idler sprocket brg

2-4шт.

3

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

idler sprocket

2-4шт.

4

H433990

WASHER

felt, special, idler sprocket

2-4шт.

5

H433898

SHAFT

idler sprocket, non-lubncable, if used

1-2шт.

5a

H436669

SHAFT

idler sprocket, lubricable, service option

1шт.

6

H759109

SEAL

two-piece, idler sprocket shaft

2-4шт.

7

H433851

DRIVE SPROCKET

trencher boom end, 13T

1шт.

8

H759109

SEAL

two-piece, boom end sprocket bearing

2шт.

9

100-21393

SNAP RING,3.938", Int, #393

Brg locating, boom end sprocket

1шт.

10

H433990

WASHER

felt, special, boom end sprocket

2шт.

11

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

boom end sprocket

2шт.

12

H433777

SHAFT

boom end sprocket, non-lubricable, if used

1шт.

13

H436670

SHAFT

boom end sprocket, lubricable, service option

1шт.
