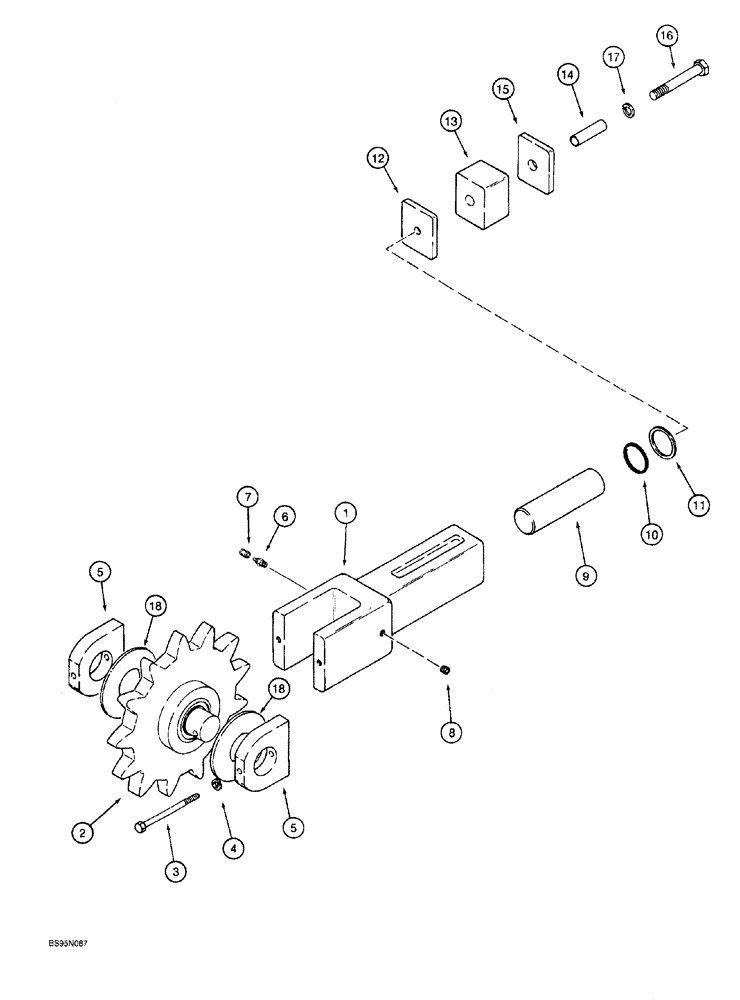

Запчасти Case 760 (09-066) - TRENCHER BOOM END, STANDARD TRENCHER BOOM (89) - TOOLS

1

H433863

END

BOOM trencher

1шт.

2

H433851

DRIVE SPROCKET

trencher boom end, see Fig. 9-68, Refs. 7 through 13, for sprocket and related parts

1шт.

3

326-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

5

H433404

CAP

trencher boom end

2шт.

6

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

grease, straight, with cap, 1/8 PT x 1 inch

1шт.

7

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

grease, straight, with cap, 1/8 PT x 1 inch, no longer available, order Ref. 6, 219-66, fitting

1шт.

8

H114728

PLUG

hex socket, 3/8 inch PT, bleed

1шт.

9

H114512

PLUNGER

ROD plunger

1шт.

10

238-6332

O-RING,0.21" Thk x 2.35" ID, -332, Cl 6, 90 Duro

1шт.

11

H745711

WASHER

backup, O-ring

1шт.

12

H433391

LARGE PLATE

PLATE, LARGE RETAINER boom end cushion, inner

1шт.

13

H433392

SHOCK ABSORBER

CUSHION boom end

1шт.

14

H433509

TUBE,19.86 mm ID x 25.4 mm OD x 76 mm L

boom end cushion

1шт.

15

H433508

LARGE PLATE

PLATE, LARGE RETAINER boom end cushion, outer

1шт.

16

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

18

H433867

WASHER

SPACER trencher boom end sprocket

2шт.
