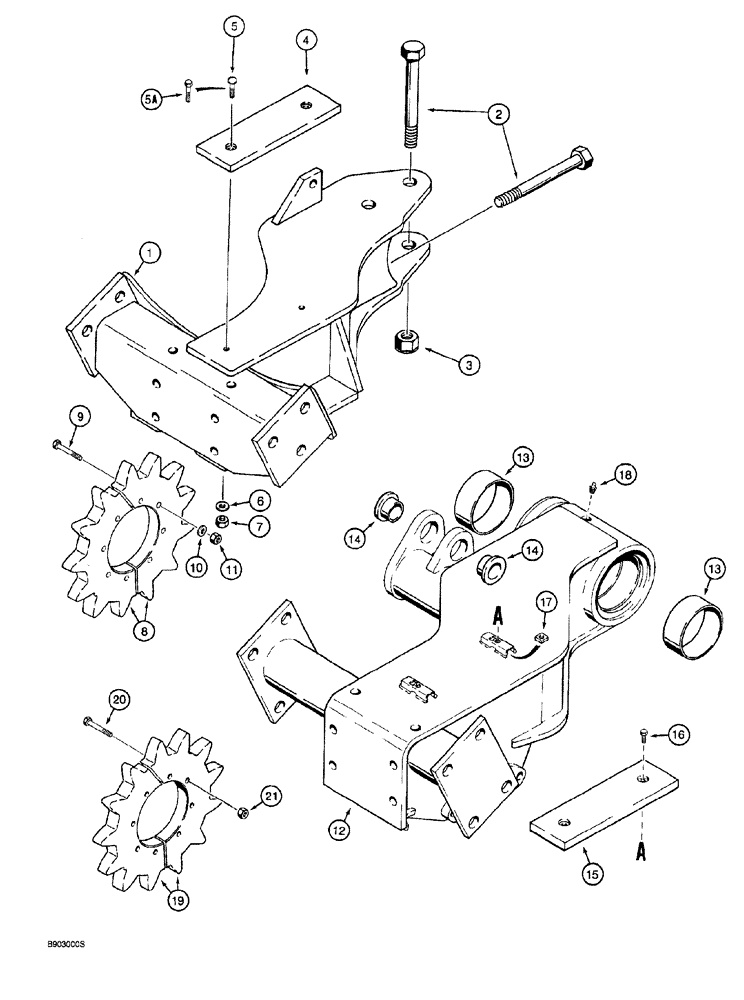

Запчасти Case 760 (09-062) - TRENCHER BOOM MOUNTING BRACKET, TRENCHERS W/ DUAL (INTERNAL) BOOM LIFT CYLINDERS (89) - TOOLS

1

H672730

BOOM

BRACKET trencher mounting, with dual (internal) boom lift cylinders

1шт.

See Fig. 9-64 for standard trencher booms and Fig. 9-66 for standard trencher boom ends. See Fig. 9-70 or 9-72 for trencher rock booms

1шт.

2

426-16144

BOLT,Hex, 1" - 8 x 9", Gr 8

hex, 1 NC x 9 inch, grade 8, trenchers with dual (internal) boom lift cylinders

6шт.

3

232-41116

LOCK NUT,1"-8, GC

Trenchers with dual (internal) boom lift cylinders

2шт.

4

H433382

STRIP

PAD wear, polyethylene, trencher boom mounting bracket, if used, trenchers with dual (internal) boom lift cylinders

1шт.

4

H434547

STRIP

PAD wear, steel, trencher boom mounting bracket, if used, trenchers with dual (internal) boom lift cylinders

1шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

Used with H433382 wear pad, trenchers with dual (internal) boom lift cylinders

2шт.

5a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with H434547 wear pad, trenchers with dual (internal) boom lift cylinders

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Trenchers with dual (internal) boom lift cylinders

2шт.

7

232-4116

NUT,3/8"-16, GC

Trenchers with dual (internal) boom lift cylinders

2шт.

8

H433264

DRIVE SPROCKET

chain, 13 teeth, trenchers with dual (internal) boom lift cylinders

1шт.

9

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

hex, 1/2 NF x 2-3/4 inch, grade 8, trenchers with dual (internal) boom lift cylinders

8шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, Trenchers with dual (internal) boom lift cylinders

8шт.

11

232-4618

LOCK NUT,1/2"-20, GC

Trenchers with dual (internal) boom lift cylinders

8шт.

H672813

BRACKET

ASSEMBLY, trencher boom mounting, trenchers with single (external) boom lift cylinder, Includes: Ref. 12 - 14

1шт.

See Fig. 9-64 for standard trencher booms and Fig. 9-66 for standard trencher boom ends. See Fig. 9-70 or 9-72 for trencher rock booms

1шт.

12

NSS

NOT SOLD SEPARAT

BRACKET trencher boom mounting, trenchers with single (external) boom lift cylinder

1шт.

13

H437509

BUSHING

BUSHING nylon, bracket, boom pivot, trenchers with single (external) boom lift cylinder

2шт.

14

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

bracket, lift cylinder pivot, trenchers with single (external) boom lift cylinder

2шт.

15

H434547

STRIP

PAD wear, steel, trenchers with single (external) boom lift cylinder

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Trenchers with single (external) boom lift cylinder

2шт.

17

84899

SQUARE NUT,Sq, 3/8"-16, G2

trenchers with single (external) boom lift cylinder

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Trenchers with single (external) boom lift cylinder

1шт.

19

H438347

SPROCKET ASSY.

split, includes both halves, digging chain, trenchers with single (external) boom lift cylinder

1шт.

20

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

Trenchers with single (external) boom lift cylinder

8шт.

21

232-4619

LOCK NUT,9/16"-18, GC

Trenchers with single (external) boom lift cylinder

8шт.
