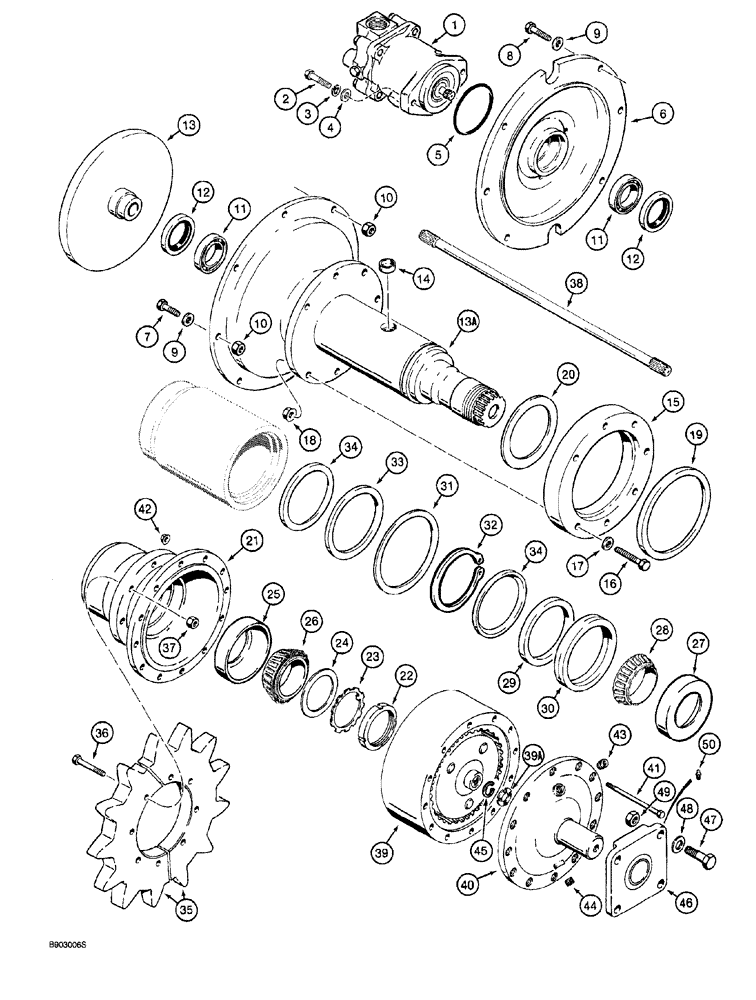

Запчасти Case 760 (09-060) - TRENCHER DRIVE LINE MOUNTING, TRENCHERS WITH SINGLE (EXTERNAL) BOOM LIFT CYLINDER (89) - TOOLS

1

H673186

HYDRAULIC MOTOR

ASSEMBLY, trencher drive, parts list Fig. 8-112

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

H274894

WASHER

flat, special

2шт.

5

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Pump to flywheel cover

1шт.

6

H434811

COVER

flywheel and pump mounting

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

9

H274894

WASHER

flat, special

8шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

11

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

flywheel, replaces G13075

2шт.

12

H438061

SEAL,53.98mm ID x 81.13mm OD x 11.1mm Thk

flywheel bearing

2шт.

13

H672817

FLYWHEEL

trencher

1шт.

13a

H434813

PIVOT

MOUNT boom pivot

1шт.

14

41-1620

PLUG,Cup, 1 1/4", Stainless

cup, 1-1/4 inch diameter

2шт.

15

H437580

SPACER

pivot, Serial Range: mount-frame

1шт.

16

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

7шт.

17

H274894

WASHER

flat, special

7шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

19

H437506

SEAL,166.65mm ID x 187.58mm OD x 9.93mm Thk

spacer to trencher frame

1шт.

20

H437581

WASHER

special, at boom pivot mount

1шт.

21

H437596

HUB

digging chain sprocket

1шт.

22

54-2015

BEARING LOCK NUT,Tan-15, Bearing

bearing lock, TAN 15

1шт.

23

192-315

BEARING WASHER,Type W-15

bearing lock, SAE No. W-15

1шт.

24

L112617

WASHER

shim

1шт.

25

A67327

BEARING CUP,120 mm OD x 25 mm

tapered roller, small

1шт.

26

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

tapered roller, small, planetary end

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller, large

1шт.

28

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, large

1шт.

29

H428839

SEAL,107.95mm ID x 133.5mm OD x 12.7mm Thk

hub

1шт.

30

H433852

SEAL

planetary

1шт.

31

H438269

WASHER

wear, special

1шт.

32

S64875

SNAP RING

wear washer

1шт.

33

H437582

WASHER,121.15mm ID x 150mm OD x 6.35mm Thk

WASHER special, seal retainer

1шт.

34

H437505

SEAL,118.57mm ID x 136.75mm OD x 8.33mm Thk

hub to boom mount

2шт.

35

H438347

SPROCKET ASSY.

split, includes both halves, digging chain

1шт.

36

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

8шт.

37

232-4619

LOCK NUT,9/16"-18, GC

8шт.

38

H434946

SHAFT

trencher drive

1шт.

39

H674394

GEAR WHEEL

PLANETARY ASSEMBLY, trencher drive, parts list Fig. 9-78

1шт.

39a

N6363

WASHER

thrust, sun gear, included with H674394 planetary, see Fig. 9-78, Ref. 17

1шт.

40

H428714

COVER

planetary

1шт.

41

413-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

hex, 3/8 NC x 5-3/4 inch

12шт.

42

231-5146

FLANGE NUT,3/8"-16

12шт.

43

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless

1шт.

44

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

square socket, magnetic, 1/2 inch PT

1шт.

45

100-2175

SNAP RING,0.75", Int, #75

Planetary (Replaces G46150)

1шт.

46

H758292

BEARING

planetary, outer support

1шт.

47

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

48

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened, replaces H426809

4шт.

49

230-42110

LOCK NUT,5/8"-11, GA

hex, self-locking, 5/8 inch NC

4шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
