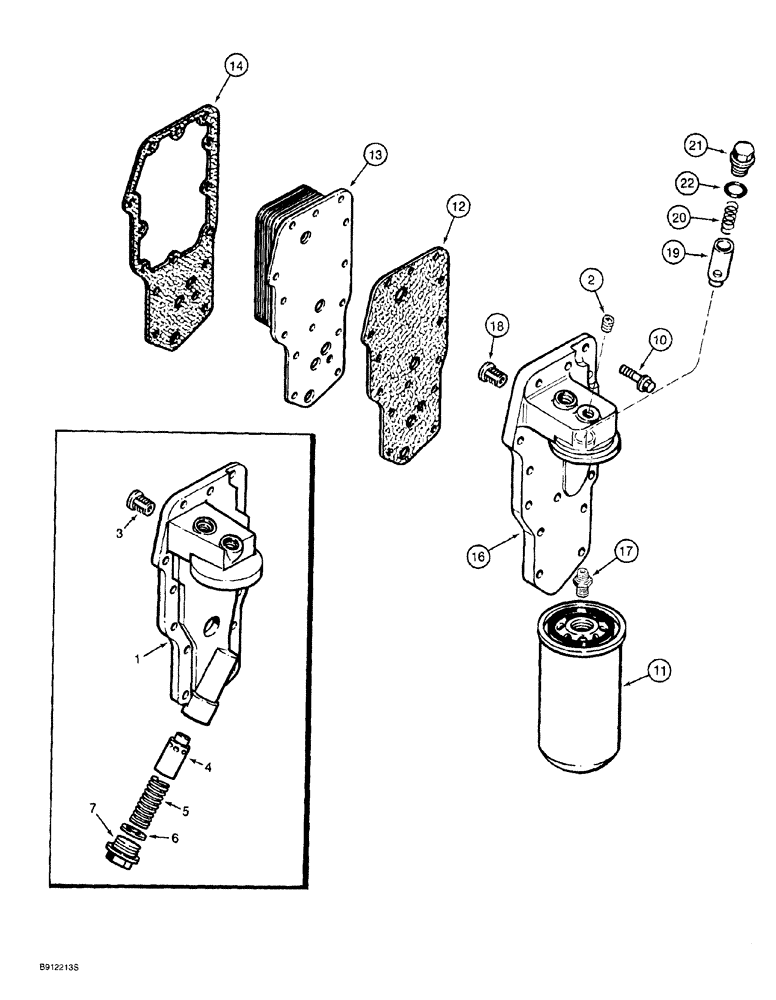

Запчасти Case 760 (02-022) - OIL FILTER AND COOLER, 4-390 ENGINE (10) - ENGINE

1

J902295

HEAD ASSY.

oil filter and cooler, prior to Engine Serial Number 44257900

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

EF

1шт.

4

J909376

PLUNGER

regulator, pressure, prior to Engine Serial Number 44257900

1шт.

5

J903261

SPRING

compression, 55 mm free length, 17 coils, prior to Engine Serial Number 44257900

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, prior to Engine Serial Number 44257900

1шт.

7

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 15, prior to Engine Serial Number 44257900, replaces J904386

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

11

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

engine oil, cartridge

1шт.

12

J929792

GASKET,1.2mm Thk

filter head, replaces J912532 and J918257

1шт.

13

J921557

COOLER

CORE, oil, replaces J904320 and J918292

1шт.

14

J926760

GASKET

oil cooler core, oil, replaces J914387 and J918256

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY, oil filter and cooler, top port, Engine Serial Number 44257900 through 44511033, no longer available, order J918954, Includes: Ref. 16

1шт.

16

J909352

FILTER COVER

HEAD and cooler, Engine Serial Number 44257900 through 44511033, for service order J918954

1шт.

J918954

HEAD

ASSEMBLY, oil filter and cooler, Engine Serial Number 44511034 and after, Includes: Ref. 16 and 17

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD lube oil filter and cooler

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

17

J909355

ADAPTER

filter head

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

18

J902338

VALVE, PRESSURE RELI

EF

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

19

J914084

VALVE

PLUNGER regulator, pressure, one hole, Engine Serial Number 44257900 through 44511033, use with Ref. 20 spring

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

19

J918428

PLUNGER

regulator, pressure, Engine Serial Number 44511034 and after, use with Ref. 20 spring

1шт.

20

J918427

SPRING

compression, 54 mm free length, 16-1/2 coils

1шт.

21

J915787

PLUG

threaded, special, Engine Serial Number 44257900 and after

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

22

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Engine S/N 44257900 and after

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

J915766

KIT

oil cooler cover, Includes: Ref. 16, 17, 18, 19, 21 and 22, no longer available, order components

1шт.
