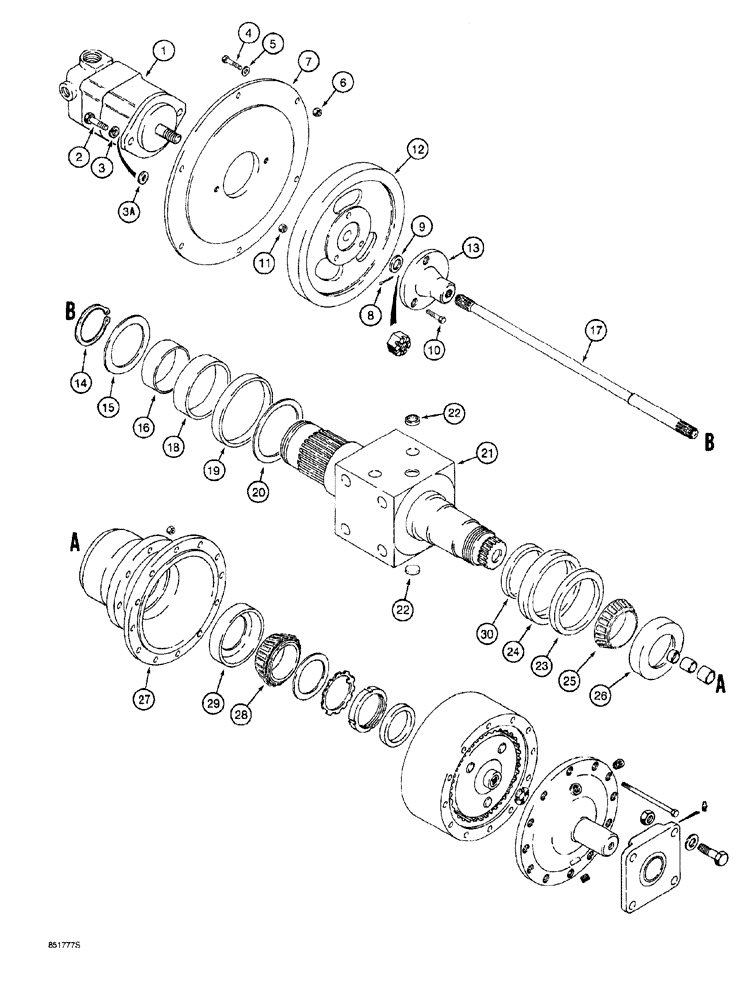

Запчасти Case 760 (09-056) - TRENCHER DRIVE LINE MOUNTING, TRENCHERS WITH DUAL (INTERNAL) BOOM LIFT CYLINDERS (89) - TOOLS

1

REF

INSTRUCTION

MOTOR ASSEMBLY, trencher drive, see Fig. 8-108 or 8-110 for correct components

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3a

H274894

WASHER

flat, special

2шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

6

232-4116

NUT,3/8"-16, GC

6шт.

7

H428722

PLATE

trencher motor mounting

1шт.

8

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

11

232-4116

NUT,3/8"-16, GC

3шт.

12

H433248

FLYWHEEL

trencher

1шт.

13

H426056

COUPLING

flywheel to trencher drive shaft

1шт.

14

100-11393

SNAP RING,#393, Ext

1шт.

15

H434442

WASHER

thrust, special, trencher flywheel housing

1шт.

16

H428557

BEARING

BUSHING pivot, small, 4-5/16 inch (110 mm) O.D.

1шт.

17

H434902

SHAFT

trencher drive

1шт.

18

H428565

BEARING

BUSHING pivot, large, 5-1/8 inch (130 mm) O.D.

1шт.

19

H433541

SLEEVE

RING retaining, felt washer

1шт.

20

H433540

WASHER

special, felt

1шт.

21

H434348

PIVOT

MOUNT boom

1шт.

22

41-1620

PLUG,Cup, 1 1/4", Stainless

cup, 1-1/4 inch diameter

2шт.

23

H428839

SEAL,107.95mm ID x 133.5mm OD x 12.7mm Thk

hub

1шт.

24

H433852

SEAL

planetary

1шт.

25

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, large

1шт.

26

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller

1шт.

27

H428706

HUB

digging chain

1шт.

28

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

tapered roller, small, planetary end

1шт.

29

A67327

BEARING CUP,120 mm OD x 25 mm

tapered roller

1шт.

30

H433936

SLEEVE

wear

1шт.

31

L112617

WASHER

shim, special, hardened

1шт.

32

192-315

BEARING WASHER,Type W-15

bearing lock, SAE No. W-15

1шт.

33

54-2015

BEARING LOCK NUT,Tan-15, Bearing

bearing lock, TAN 15

1шт.

34

H428581

SPACER

planetary

1шт.

35

F7150

SEAL

trencher drive shaft bearing

1шт.

H672614

BEARING

ASSEMBLY, trencher drive shaft, Includes: Ref. 36 and 37

1шт.

36

T34882

BEARING

trencher drive shaft

1шт.

37

H434349

BUSHING

Bearing

1шт.

38

H674394

GEAR WHEEL

PLANETARY ASSEMBLY, trencher drive, parts list Fig. 9-78

1шт.

38a

N6363

WASHER

thrust, sun gear, included with H674394 planetary, see Fig. 9-78, Ref. 17

1шт.

39

H428714

COVER

planetary

1шт.

40

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless

1шт.

41

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

square socket, magnetic, 1/2 inch PT

1шт.

42

413-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

hex, 3/8 NC x 5-3/4 inch

12шт.

43

232-4116

NUT,3/8"-16, GC

12шт.

44

H758292

BEARING

planetary, outer support

1шт.

45

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

46

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

47

232-41110

NUT,5/8"-11, GC

4шт.

48

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF, included with H672437 and H673912 trencher drive motors

1шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
