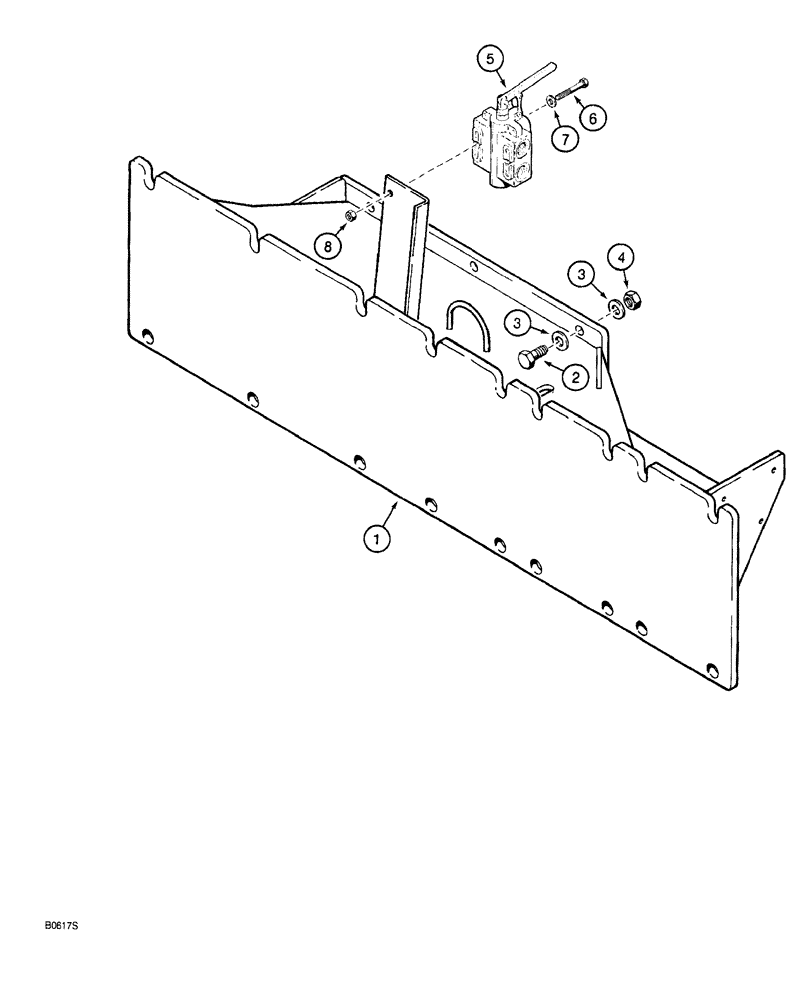

Запчасти Case 760 (09-054) - QUAD FRAME AND MOUNTING (89) - TOOLS

1

H672924

CHASSIS

FRAME quad, used to mount trencher and plow attachments to rear of unit

1шт.

WARNING! Install quad frame only on machines with P.I.N. JAF0022905 and after. ROPS and support structure on machines prior to P.I.N. JAF0022905 will not provide proper protection in the event of a roll-over

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

6шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

12шт.

4

232-41116

LOCK NUT,1"-8, GC

6шт.

5

H672979

VALVE

ASSEMBLY, selector, trencher/plow, parts list Fig. 8-166

1шт.

6

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

8

232-4116

NUT,3/8"-16, GC

2шт.
