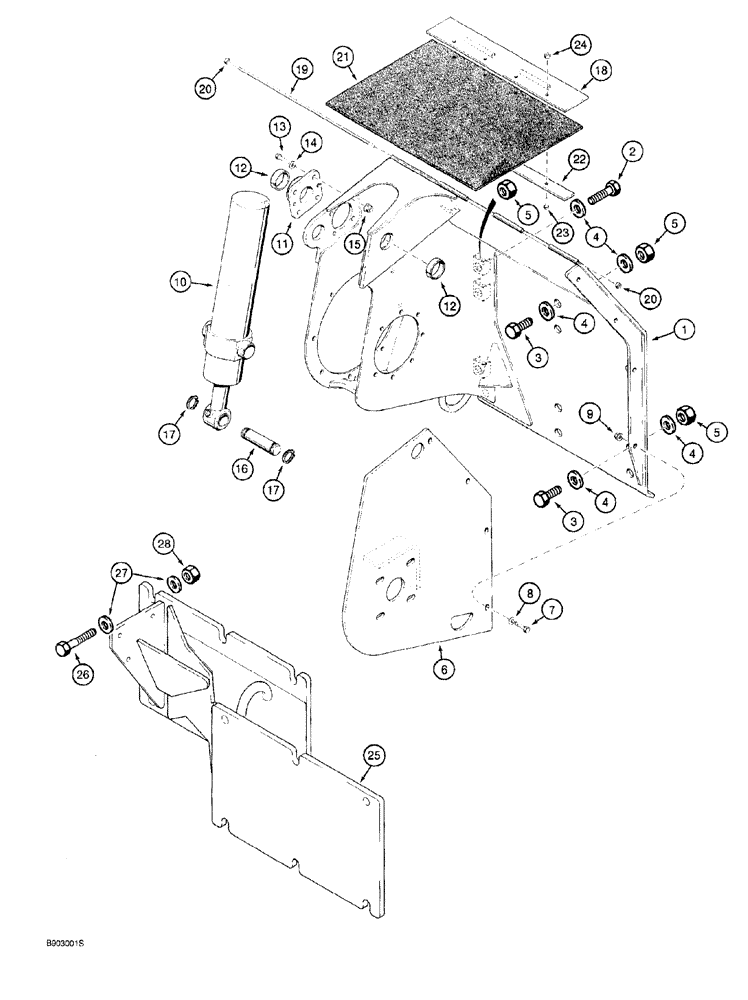

Запчасти Case 760 (09-052) - TRENCHER FRAME AND MOUNTING, TRENCHERS WITH SINGLE (EXTERNAL) BOOM LIFT CYLINDER (89) - TOOLS

1

H672814

CHASSIS

FRAME trencher

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

3

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, replaces H426833

12шт.

5

232-41116

LOCK NUT,1"-8, GC

6шт.

6

H674660

PLATE

COVER trencher frame

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

H274894

WASHER

flat, special

8шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

H672822

CYLINDER

ASSEMBLY, 4 (102) ID x 16-1/2 inch (419 mm) stroke, trencher boom lift, parts list Fig. 8-116, no longer available, order 221702A1

1шт.

10

221702A1

CYLINDER

ASSEMBLY, 4 (102) ID x 16-1/2 inch (419 mm) stroke, trencher boom lift, parts list Fig. 8-116

1шт.

H673643

BLOCK

PIVOT ASSEMBLY, cylinder, Includes: Ref. 11 and 12

1шт.

11

H436516

BLOCK

PIVOT cylinder

1шт.

12

H436164

BUSHING

cylinder pivot

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

14

H274894

WASHER

flat, special

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

D44881

PIN,38.1mm OD x 136.4mm L

lift cylinder retaining

1шт.

17

D25279

SNAP RING,M35, Int

2шт.

18

H672818

PLATE

mounting, dirt deflector

1шт.

19

H434815

STEM

ROD dirt deflector pivot

1шт.

20

232-4115

LOCK NUT,5/16"-18, GC

2шт.

21

H438441

DEFLECTOR

dirt

1шт.

22

H434825

PLATE

support, dirt deflector

1шт.

23

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

24

232-4115

LOCK NUT,5/16"-18, GC

4шт.

25

H674014

SUPPORT

mounting, offset trencher parts

1шт.

26

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

Offset trencher parts

6шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, offset trencher parts

12шт.

28

232-41116

LOCK NUT,1"-8, GC

Offset trencher parts

6шт.
