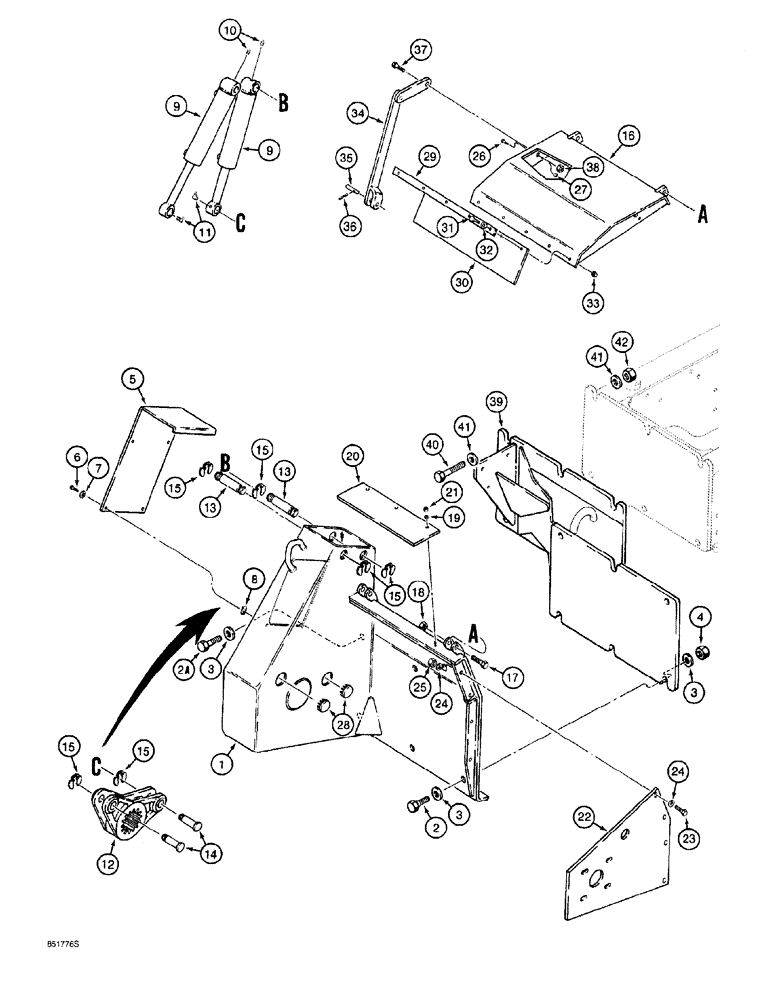

Запчасти Case 760 (09-050) - TRENCHER FRAME AND MOUNTING, TRENCHERS WITH DUAL (INTERNAL) BOOM LIFT CYLINDERS (89) - TOOLS

1

H669473

FRAME ASSY

trencher

1шт.

2

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

2a

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

12шт.

4

232-41116

LOCK NUT,1"-8, GC

6шт.

5

H428672

COVER

access

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

7

H426775

WASHER

flat, special, hardened

4шт.

8

H346650

NUT

U-type, 5/16 inch NC

4шт.

9

H672823

CYLINDER ASSY.

3-1/2 (89) ID x 10-1/4 inch (260 mm) stroke, trencher boom lift, parts list Fig. 8-116

2шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

2шт.

11

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

12

H428698

PIVOT

CRANK trencher boom

1шт.

13

H428631

PIN

pivot, upper

2шт.

14

H428599

PIN

clevis, lower

2шт.

15

H428771

RING, SNAP

RING SNAP retaining, pin

6шт.

16

H672111

DEFLECTOR

dirt

1шт.

17

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

18

232-41110

NUT,5/8"-11, GC

2шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

3шт.

20

H399337

PANEL

FLAP dirt

1шт.

21

232-4115

LOCK NUT,5/16"-18, GC

3шт.

22

H672745

PLATE

end, trencher frame

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

24

H274894

WASHER

flat, special

8шт.

25

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

4шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used as stop for Ref. 34 link

1шт.

27

232-4115

LOCK NUT,5/16"-18, GC

1шт.

28

205-67

HOLE PLUG BUTTON,2"

button, 2 inch, replaces H433953

2шт.

29

H433319

STRIP

deflector clamping

1шт.

30

H433321

PANEL

DEFLECTOR, 4 ply rubberized belting

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

32

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

5шт.

33

232-4115

LOCK NUT,5/16"-18, GC

5шт.

34

H672112

LINK

dirt deflector

1шт.

35

H433555

PIN

link

1шт.

36

438-11232

LOCK PIN,3/16" x 2", Slotted

3/16" x 2", Slotted

1шт.

37

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

38

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

39

H674014

SUPPORT

mounting, offset trencher parts

1шт.

40

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

Offset trencher parts

6шт.

41

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, offset trencher parts

12шт.

42

232-41116

LOCK NUT,1"-8, GC

Offset trencher parts

6шт.
