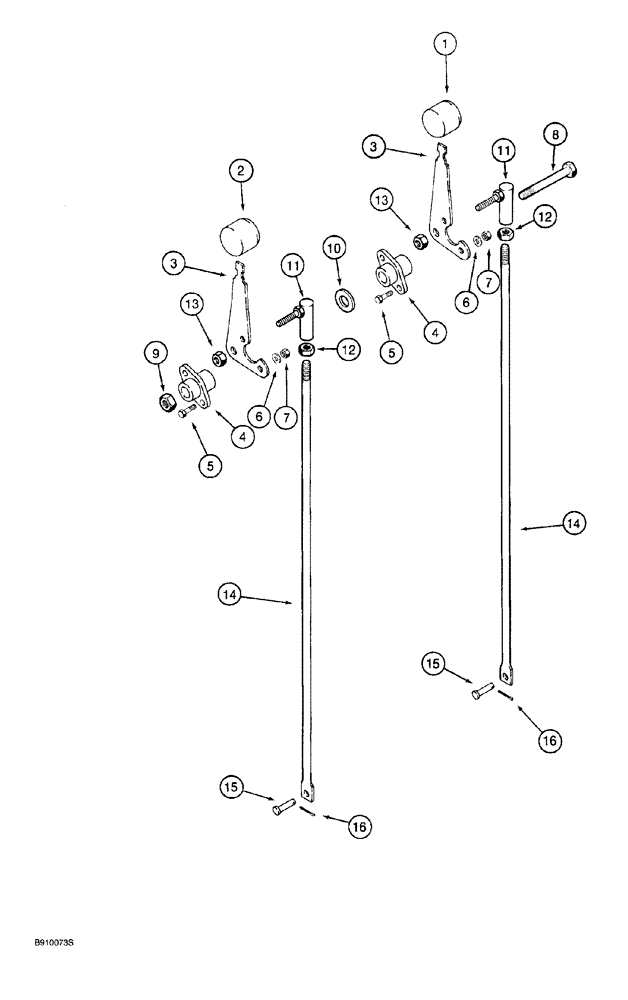

Запчасти Case 760 (09-048) - ATTACHMENT LIFT CONTROLS, ATTACHMENT CONTROL RODS HAVE MALE THREADS AT BALL JOINT ENDS (89) - TOOLS

1

A177440

KNOB

yellow, see Fig. 5-4 or 5-6 for rear wheel positioner knob used on models without electronic rear steering

1шт.

2

A177438

KNOB

black

1шт.

3

H436209

HANDLE

LEVER attachment lift controls

1-2шт.

4

A162299

BEARING,15.95mm ID

BEARING flange

1-2шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-4шт.

6

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

2-4шт.

7

230-4214

LOCK NUT,1/4"-20, GA

2-4шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

9

232-41110

NUT,5/8"-11, GC

1шт.

10

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

11

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

3/8 inch NF, replaces A60307 joint

1шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

1-2шт.

13

232-4616

LOCK NUT,3/8"-24, GC

1шт.

14

H435754

LINK

ROD valve lift control, handle to valve, 630 mm long

1-2шт.

15

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN, special

1шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

1-2шт.
