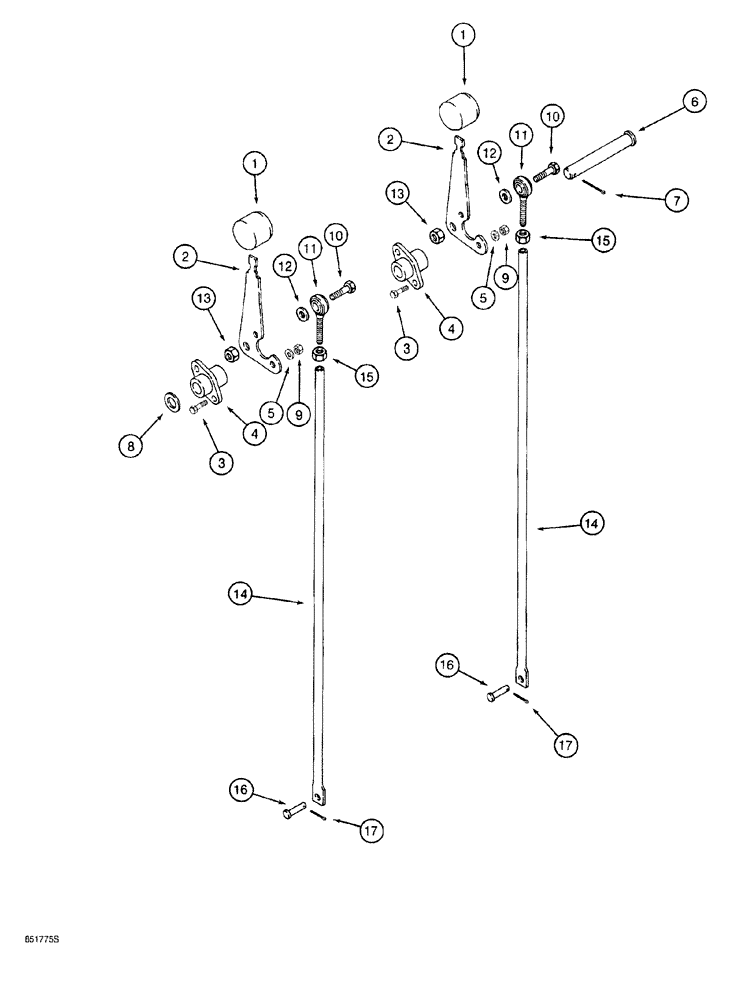

Запчасти Case 760 (09-046) - ATTACHMENT LIFT CONTROLS, ATTACHMENT CONTROL RODS HAVE FEMALE THREADS AT BALL JOINT ENDS (89) - TOOLS

1

A177438

KNOB

see Fig. 5-4 or 5-6 for rear wheel positioner knob used on models without electronic rear steering

1-2шт.

2

H433311

HANDLE

LEVER control

1-2шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-4шт.

4

A162299

BEARING,15.95mm ID

BEARING flange

1-2шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2-4шт.

6

H25841

CLEVIS

PIN

1шт.

7

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

8

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

9

230-4214

LOCK NUT,1/4"-20, GA

2-4шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

A76725

BALL JOINT

female, 5/16 inch NF

1шт.

12

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

13

230-4215

NUT,5/16"-18, GA

1шт.

14

H433327

LINK

ROD attachment lift control valve actuating

1-2шт.

15

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

16

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN

1-2шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.
