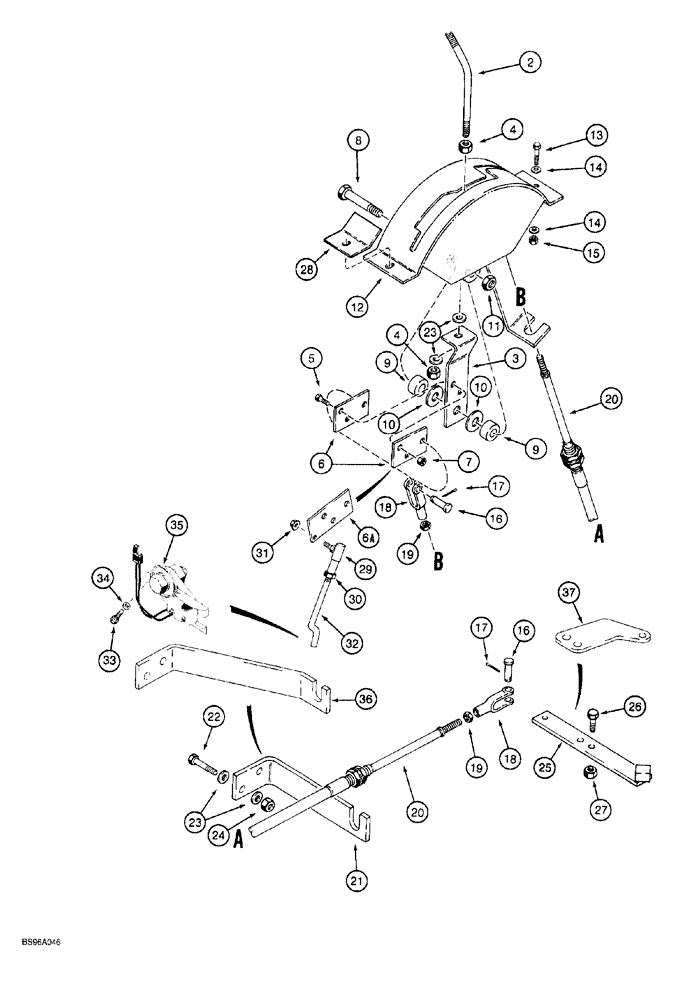

Запчасти Case 760 (09-042) - ATTACHMENT SPEED CONTROL (89) - TOOLS

1

A14051

GRIP

KNOB attachment speed control lever

1шт.

2

H191924

LEVER

ROD control

1шт.

3

H434691

LEVER

control, attachment speed

1шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

H433515

PLATE

cable mounting (1) used on units with neutral start switch at right-hand console and (2) used on units with neutral start switch at tandem pump

1-2шт.

6a

H435825

LARGE PLATE

PLATE, LARGE cable and ball joint mounting, used on units with neutral start switch at right-hand console

1шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

7

230-4215

NUT,5/16"-18, GA

2шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

1шт.

9

H428284

SPACER

lever

2шт.

10

H256305

WASHER

flat, special, friction

2шт.

11

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

12

H672244

CONTROL

HOUSING lever

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

H426775

WASHER

flat, special, hardened

4шт.

15

230-4215

NUT,5/16"-18, GA

Cutting edge, Bucket, Center, Order H672511 assembly

2шт.

16

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN

2шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

18

A18709

CLEVIS

cable end

2шт.

19

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

20

H644401

CABLE

attachment speed control

1шт.

21

H433503

ANGLE

BRACKET cable mounting, if used

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

24

230-4216

LOCK NUT,3/8"-16, GA

2шт.

25

H672618

LEVER

tandem pump control, if used

1шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

230-4216

LOCK NUT,3/8"-16, GA

2шт.

28

H435573

STOP

plow speed control, used only on units equipped with plow

1шт.

29

L12437

BALL JOINT,#10 - 32 x 7/8"

, Serial Range: plate-rod

1шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

30

225-14210

NUT,#10-32

1шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-3, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

32

H435816

ROD

ball joint to switch actuator

1шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

34

H426775

WASHER

flat, special, hardened

2шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

35

H673443

SWITCH

ASSEMBLY, neutral start, parts list Fig. 9-44

1шт.

This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511

1шт.

36

107829A1

BRACKET

mounting, cable, if used

1шт.

37

107828A1

LEVER

tandem pump control, if used

1шт.
