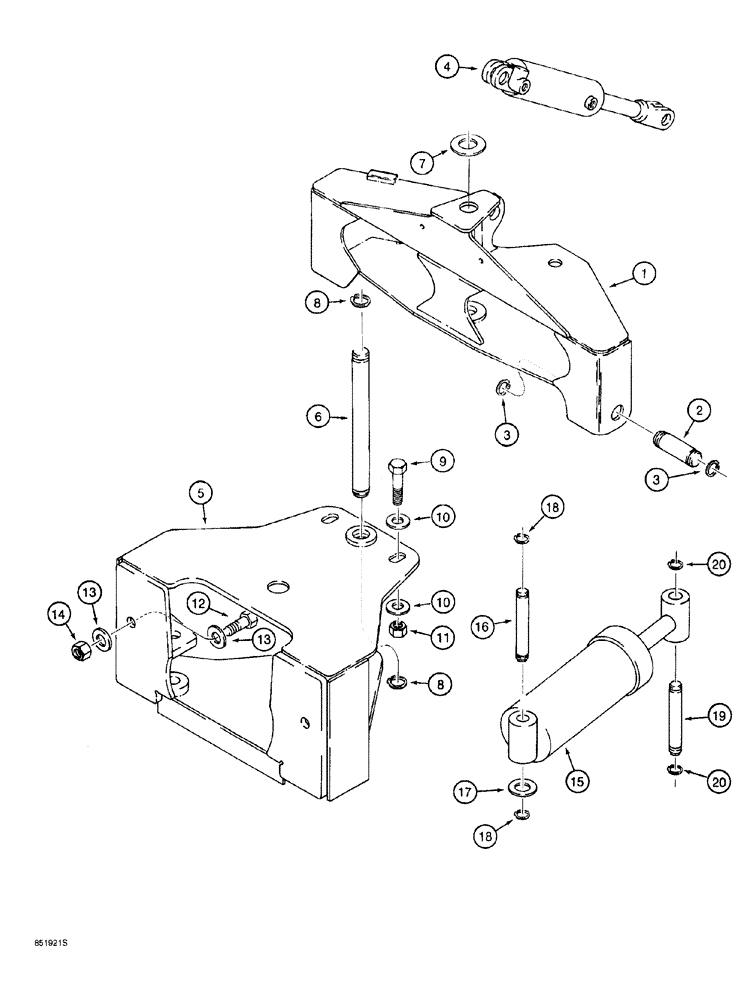

Запчасти Case 760 (09-102) - BACKFILL BLADE MOUNTING BRACKET AND FRAME (86) - DOZER

1

H672094

PIVOT

BRACKET backfill arm

1шт.

See Fig. 9-100 for backfill blade and mounting arm

1шт.

2

H432898

PIVOT PIN

2шт.

3

D25279

SNAP RING,M35, Int

pin

4шт.

4

H672345

CYLINDER

ASSEMBLY, 3 (76) ID x 8 inch (203 mm) stroke, includes pins and hardware, parts list Fig. 8-84

1шт.

5

H672095

FRAME

backfill blade mounting

1шт.

See Fig. 9-100 for backfill blade and mounting arm

1шт.

6

H432906

PIVOT PIN

bracket to mounting frame

1шт.

7

195-2146

WASHER,1.56" ID x 3" OD x 0.13" Thk

flat, 1-9/16 x 3 x 1/8 inch

1шт.

8

D25279

SNAP RING,M35, Int

pin

2шт.

9

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

2шт.

10

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

4шт.

11

232-41116

LOCK NUT,1"-8, GC

2шт.

12

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

2шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

4шт.

14

232-41116

LOCK NUT,1"-8, GC

2шт.

15

H670935

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke, backfill blade angle, parts list Fig. 8-82

2шт.

16

H432880

PIN

pivot, backfill blade angle cylinder, closed end

2шт.

17

495-81209

WASHER,1.31" ID x 2.5" OD x 0.13" Thk

flat, 1-5/16 x 2-1/2 x 5/32 inch

2шт.

18

103-16125

SNAP RING,#125, Ext

Pin

4шт.

19

H432880

PIN

pivot, backfill blade angle cylinder, rod end

2шт.

20

103-16125

SNAP RING,#125, Ext

Pin

4шт.
