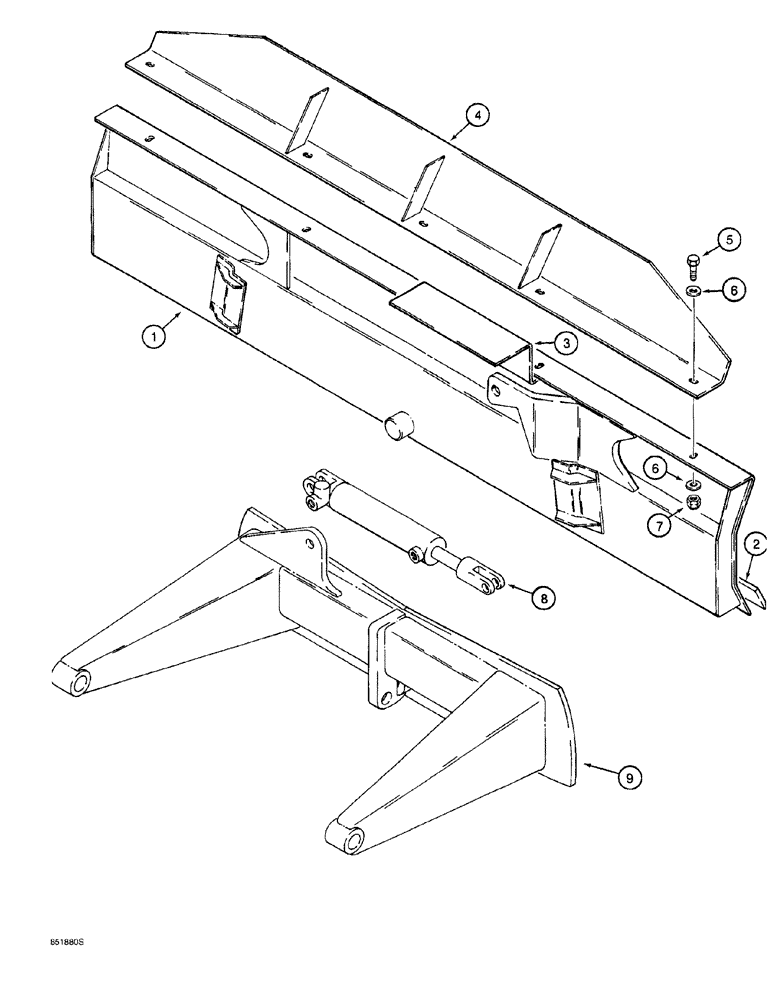

Запчасти Case 760 (09-100) - BACKFILL BLADE AND MOUNTING ARM (86) - DOZER

1

H672093

BLADE

ASSEMBLY, backfill, spoil return, Includes: Ref. 2

1шт.

See Fig. 9-102 for backfill blade mounting bracket and frame

1шт.

2

H435660

EDGE

cutting, backfill blade, replaces H430389

1шт.

3

H433775

GUARD

tilt cylinder, if used

1шт.

4

H672319

EXTENSION ASSY.

backfill blade

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

If used

5шт.

6

H274894

WASHER

flat, special, if used

10шт.

7

232-4118

NUT,1/2"-13, GC

If used

5шт.

8

H670984

CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, backfill blade tilt, includes pins and hardware, parts list Fig. 8-87

1шт.

9

H672097

ARM/LIFTING DEVICE

backfill blade mounting

1шт.
