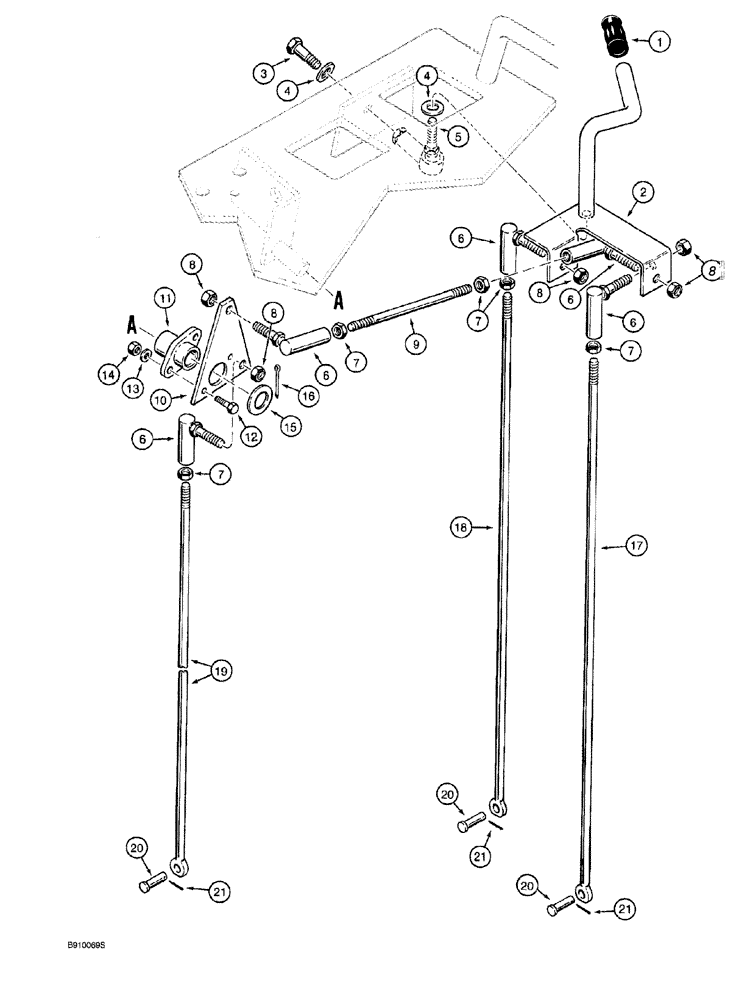

Запчасти Case 760 (09-098) - BACKFILL BLADE OR REEL CARRIER LIFT CTRL HANDLE, VALVE CTRL RODS HAVE MALE THREADS AT BALL JOINT END (86) - DOZER

1

H433038

LEVER

GRIP handle, backfill blade or reel carrier lift control

1шт.

2

H673207

HANDLED SHAFT

control, backfill blade or reel carrier lift

1шт.

3

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

hex, 1/2 NFx 1-1/4 inch

1шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

5

L44143

BALL JOINT

special

1шт.

6

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

3/8 inch NF, replaces A60307

5шт.

7

425-156

JAM NUT,Jam, 3/8"-24, G5

5шт.

8

232-4616

LOCK NUT,3/8"-24, GC

5шт.

9

H437117

LINK

ROD connecting, Serial Range: handle-bellcrank

1шт.

10

H437162

PLATE

BELLCRANK control, Serial Range: rod-valve

1шт.

11

A162299

BEARING,15.95mm ID

BEARING flange, bellcrank pivot

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

2шт.

14

230-4214

LOCK NUT,1/4"-20, GA

2шт.

15

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

17

H438112

LINK

ROD valve tilt control, handle to valve, 644 mm long

1шт.

18

H435754

LINK

ROD valve lift control, handle to valve, 630 mm long

1шт.

19

H435751

LINK

ROD valve control, blade angle, bellcrank to valve, 600 mm long

1шт.

20

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN, special, control, Serial Range: rod-valve

3шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.
