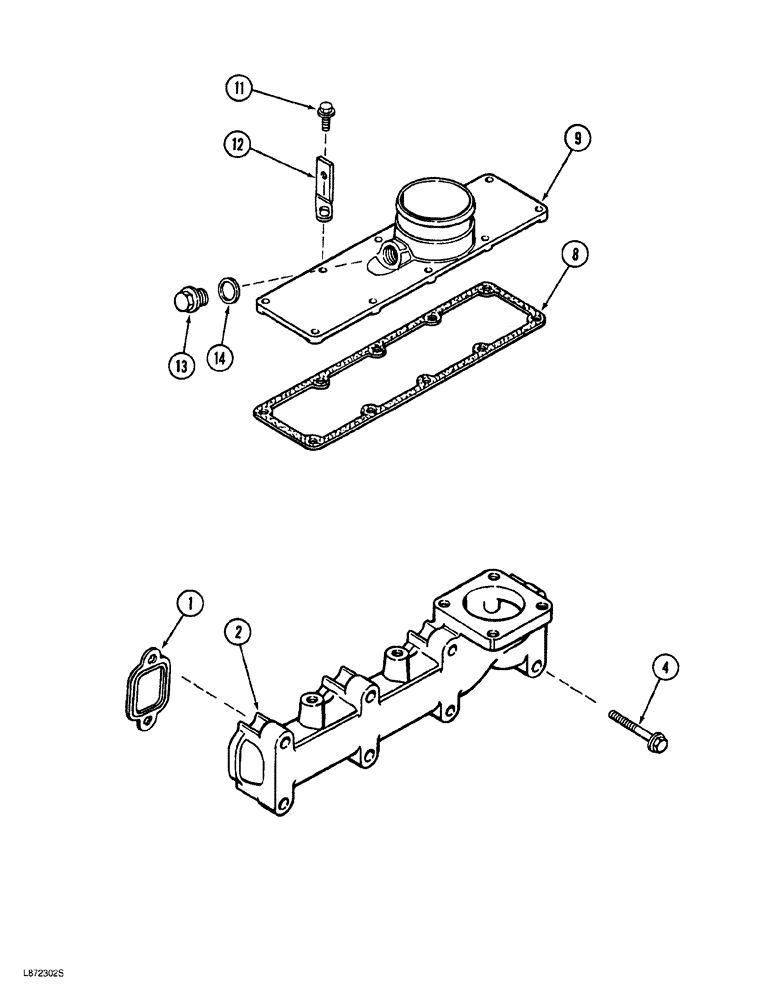

Запчасти Case 760 (02-020) - MANIFOLDS, 4-390 ENGINE (10) - ENGINE

1

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

2

J901223

MANIFOLD

exhaust

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

Exhaust

8шт.

8

J914028

GASKET

intake manifold, replaces J901999

1шт.

9

J904340

COVER

intake

1шт.

Part of Intake Manifold Kit, P/N A77415

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Replaces J904341, Intake

10шт.

12

REF

INSTRUCTION

BRACKET fuel tube, see Fig. 3-6, intake

1шт.

13

J907185

PLUG

manifold, intake

1шт.

Part of Intake Manifold Kit, P/N A77415

1шт.

14

J906773

WASHER

plug, sealing, intake

1шт.

Part of Intake Manifold Kit, P/N A77415

1шт.

A77415

COVER

KIT intake manifold, Includes: Ref. 9, 13 and 14

1шт.
