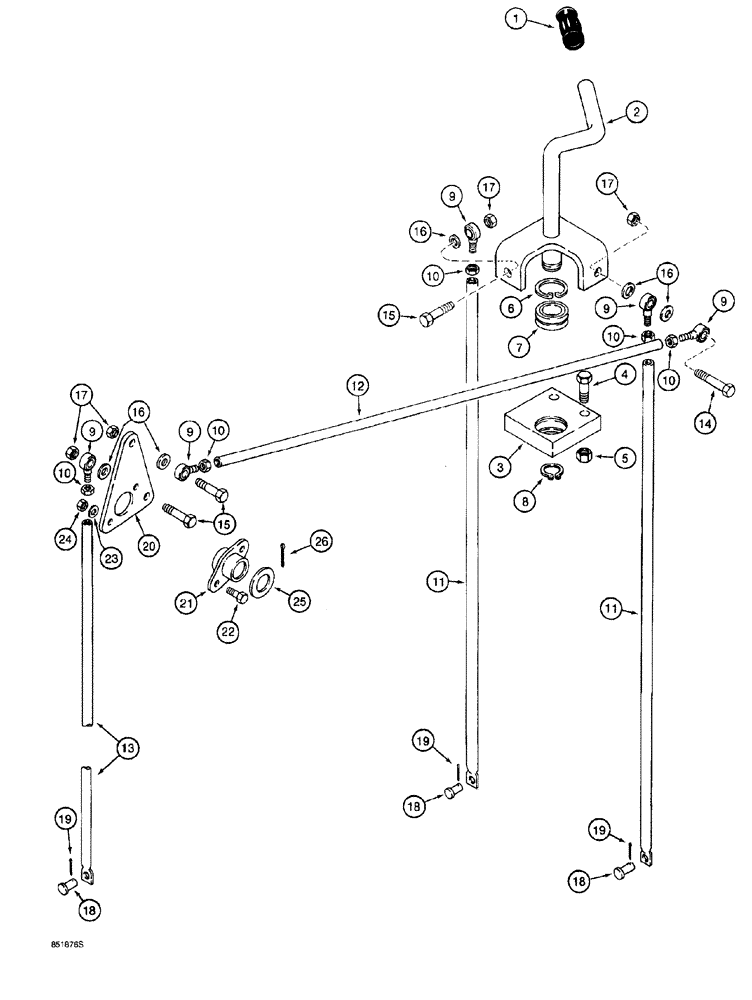

Запчасти Case 760 (09-096) - BACKFILL BLADE OR REEL CARRIER LIFT CONTROL HANDLE (86) - DOZER

1

H433038

LEVER

GRIP handle, backfill or reel carrier lift control

1шт.

2

H672109

HANDLE

control, backfill or reel carrier lift

1шт.

3

H433309

HOUSING

bushing

1шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

2шт.

6

S300917

SNAP RING

bushing, upper, replaces A21145

1шт.

7

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

BUSHING self-aligning

1шт.

8

100-1175

SNAP RING,#75, Ext

Bushing

1шт.

9

A76725

BALL JOINT

female, 5/16 inch NF

5шт.

10

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

5шт.

11

H433327

LINK

ROD handle to valve, lift and tilt

2шт.

12

H433326

LINK

ROD intermediate, Serial Range: handle-bellcrank

1шт.

13

H433328

LINK

ROD valve control, bellcrank to valve, blade angle

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

3шт.

16

H433048

SPACER

ball joint

5шт.

17

232-4115

LOCK NUT,5/16"-18, GC

4шт.

18

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN, valve control rod

3шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

20

H433310

PIVOT

BELLCRANK control, Serial Range: rod,-valve

1шт.

21

A162299

BEARING,15.95mm ID

BEARING flange, bellcrank pivot

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

24

230-4214

LOCK NUT,1/4"-20, GA

2шт.

25

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 1/8 inch

1шт.

26

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.
