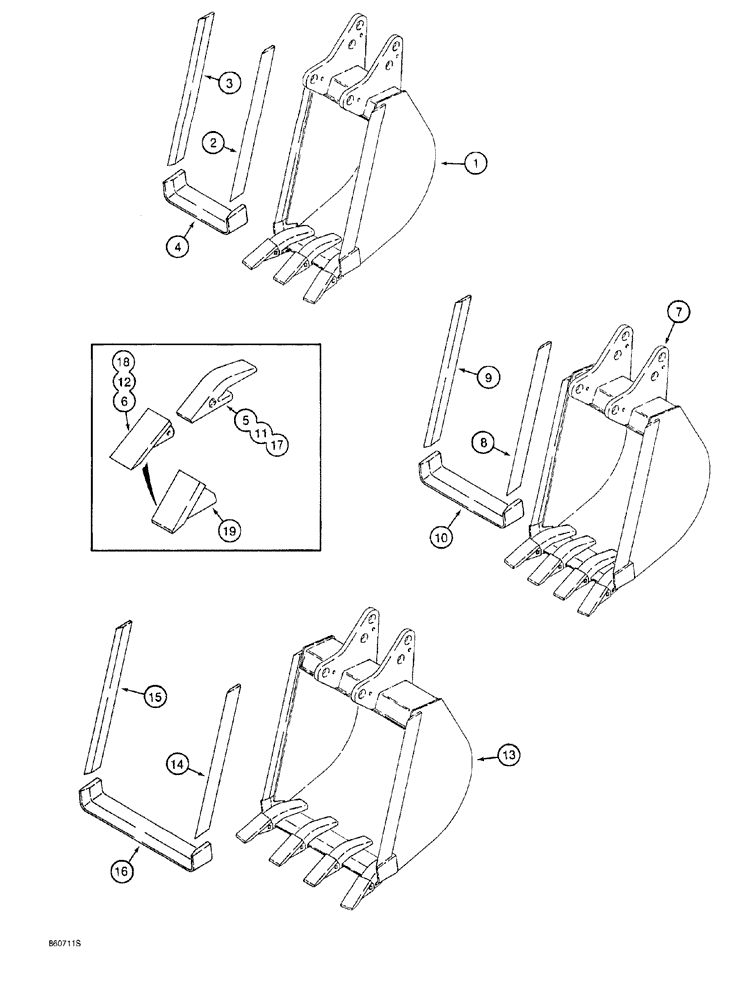

Запчасти Case 760 (09-040) - BACKHOE BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

1

H672513

BUCKET

ASSEMBLY, backhoe, 13 inch (344 mm), machinery Ref., order from Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

H433581

EDGE

PLATE cutting edge, bucket, right-hand side

1шт.

3

H433584

EDGE

PLATE cutting edge, bucket, left-hand side

1шт.

H672510

EDGE

PLATE ASSEMBLY, cutting edge, bucket, center, includes bucket teeth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE cutting edge, bucket, center, order H672510 plate assembly, Includes: Ref. 5 and 6

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

5

NSS

NOT SOLD SEPARAT

SHANK bucket tooth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

6

D27748

TOOTH

POINT bucket, standard

1шт.

7

H672514

BUCKET

ASSEMBLY, backhoe, 18 inch (458 mm), machinery Ref., order from Machinery Price List, Includes: Ref. 8 - 12

1шт.

8

H433581

EDGE

PLATE cutting edge, bucket, right-hand side

1шт.

9

H433584

EDGE

PLATE cutting edge, bucket, left-hand side

1шт.

H672511

EDGE

PLATE ASSEMBLY, cutting edge, bucket, center, includes bucket teeth, Includes: Ref. 10, 11 and 12

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE cutting edge, bucket, center, order H672511 plate assembly, Includes: Ref. 11 and 12

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

11

NSS

NOT SOLD SEPARAT

SHANK bucket tooth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

12

D27748

TOOTH

POINT bucket, standard

1шт.

13

H672515

BUCKET

ASSEMBLY, backhoe, 24 inch (610 mm), machinery Ref., order from Machinery Price List, Includes: Ref. 14 - 18

1шт.

14

H433581

EDGE

PLATE cutting, bucket, right-hand side

1шт.

15

H433584

EDGE

PLATE cutting, bucket, left-hand side

1шт.

H672512

EDGE

PLATE ASSEMBLY, cutting, bucket, center, includes bucket teeth, Includes: Ref. 16 - 18

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE cutting edge, bucket, center, order H672512 plate assembly, Includes: Ref. 17 and 18

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

17

NSS

NOT SOLD SEPARAT

SHANK bucket tooth

1шт.

Due to special weld techniques used in assembly of shanks to center cutting edge plate, bucket teeth shanks must be welded to center cutting edge plate at factory

1шт.

18

D27748

TOOTH

POINT bucket, standard

1шт.

19

D36720

TOOTH

POINT bucket, heavy duty service option

1шт.
