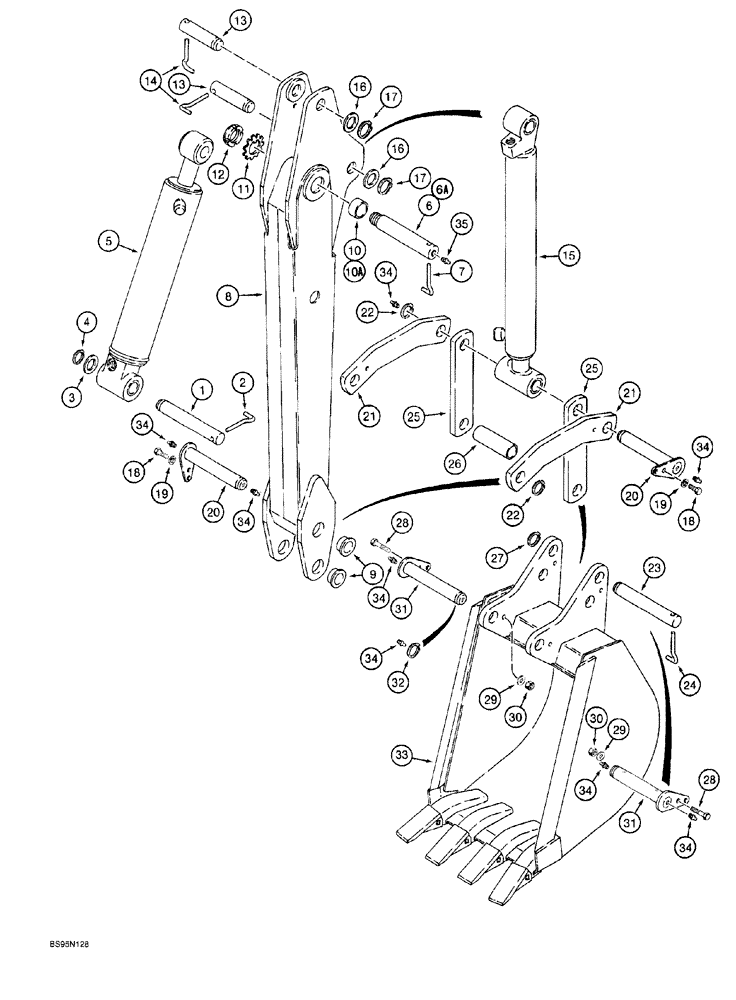

Запчасти Case 760 (09-038) - BACKHOE DIPPER AND BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

H433742

PIN

dipper, Serial Range: cylinder-boom

1шт.

2

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK

1шт.

3

H61028

WASHER

flat, special, used as shim

1шт.

4

D25279

SNAP RING,M35, Int

pin retaining

1шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY, 4 (102) ID x 17-3/8 inch (441 mm) stroke, see Fig. 8-72 ro 8-73A for correct cylinder and parts list

1шт.

6

H437193

PIN

dipper to boom, used with Ref. 10, H436238 Teflon fabric lined bushing

1шт.

See Fig. 9-30 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It's recommended that all bushings be replaced at the same time

1шт.

6a

H437962

PIN

dipper to boom, used with Ref. 10A, 113138A1 hardened steel bushing

1шт.

7

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK

1шт.

H672260

DIPPER

ASSEMBLY, backhoe, includes Refs. 8, dipper and 9, bushing, no longer available, order 113177A1 dipper and H437962 pin

1шт.

113177A1

BOOM

DIPPER ASSEMBLY, backhoe, includes Ref. 8, dipper, 9, bushing, and 10A bushing, replaces H672260 dipper assembly, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

DIPPER backhoe

1шт.

9

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

dipper, at bucket end

4шт.

10

H436238

BUSHING

Teflon fabric lined, dipper, at boom end, used with Ref. 6, H437193 pin

2шт.

See Fig. 9-30 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It's recommended that all bushings be replaced at the same time

1шт.

10a

113138A1

BUSHING

hardened steel, dipper, at boom end, used with Ref. 6A, H437962 pin

1шт.

11

192-309

BEARING WASHER,Type W-09

bearing lock, SAE No. W-09

1шт.

12

131-1036

BEARING LOCK NUT,Bearing, 1.7717" Bore

bearing lock, N-09, N-09

1шт.

13

H433743

PIN

dipper to bucket and dipper cylinders

2шт.

14

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK

2шт.

15

H672570

CYLINDER

ASSEMBLY, 3 (76) ID x 25-3/4 inch (654 mm) stroke, parts list Fig. 8-74

1шт.

16

H61028

WASHER

flat, special, used as shim

1шт.

17

D25279

SNAP RING,M35, Int

pin retaining

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

H672559

PIN

bucket links

2шт.

21

H433745

LINK

curved, bucket

2шт.

22

D25279

SNAP RING,M35, Int

pin retaining

2шт.

23

H433742

PIN

link to bucket, if used, see Refs. 28-31 and 34 for pin that is retained by bolt

1шт.

24

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK, used with H433742, if used

1шт.

25

H433746

LINK

straight

2шт.

26

H433749

SPACER

bucket links

1шт.

27

D25279

SNAP RING,M35, Int

pin retaining

1шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

30

232-4116

NUT,3/8"-16, GC

2шт.

31

H672559

PIN

dipper to bucket and bucket link

2шт.

32

D25279

SNAP RING,M35, Int

pin retaining

2шт.

33

REF

INSTRUCTION

BUCKET ASSEMBLY, backhoe, see Fig. 9-401 for options

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
