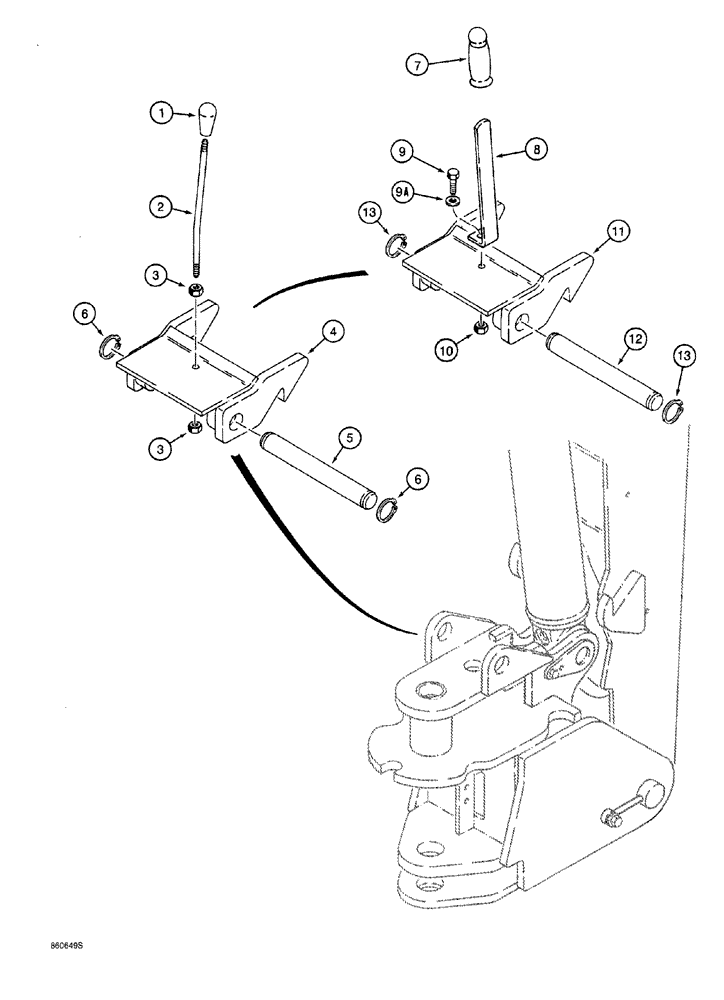

Запчасти Case 760 (09-036) - BACKHOE BOOM LATCH (84) - BOOMS, DIPPERS & BUCKETS

1

H182113

KNOB

boom latch control, models with round control rod

1шт.

2

L57940

GRIP

ROD control, models with round

1шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

Models with round control rod

2шт.

4

H672500

LATCH

retaining, backhoe boom, models with round control rod

1шт.

5

H434125

PIN

boom latch to swing tower, models with round control rod

1шт.

6

D25279

SNAP RING,M35, Int

boom latch pin retaining, models with round control rod

2шт.

7

H33332

GRIP

GRIP, models with flat control handle

1шт.

8

H436021

GRIP

HANDLE control, models with flat

1шт.

9

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch, models with flat control handle

1шт.

9a

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, Models with flat control handle

1шт.

10

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC, models with flat control handle

1шт.

11

H672500

LATCH

retaining, backhoe boom, models with flat control handle

1шт.

12

H434125

PIN

boom latch to swing tower, models with flat control handle

1шт.

13

D25279

SNAP RING,M35, Int

boom latch pin retaining, models with flat control handle

2шт.
