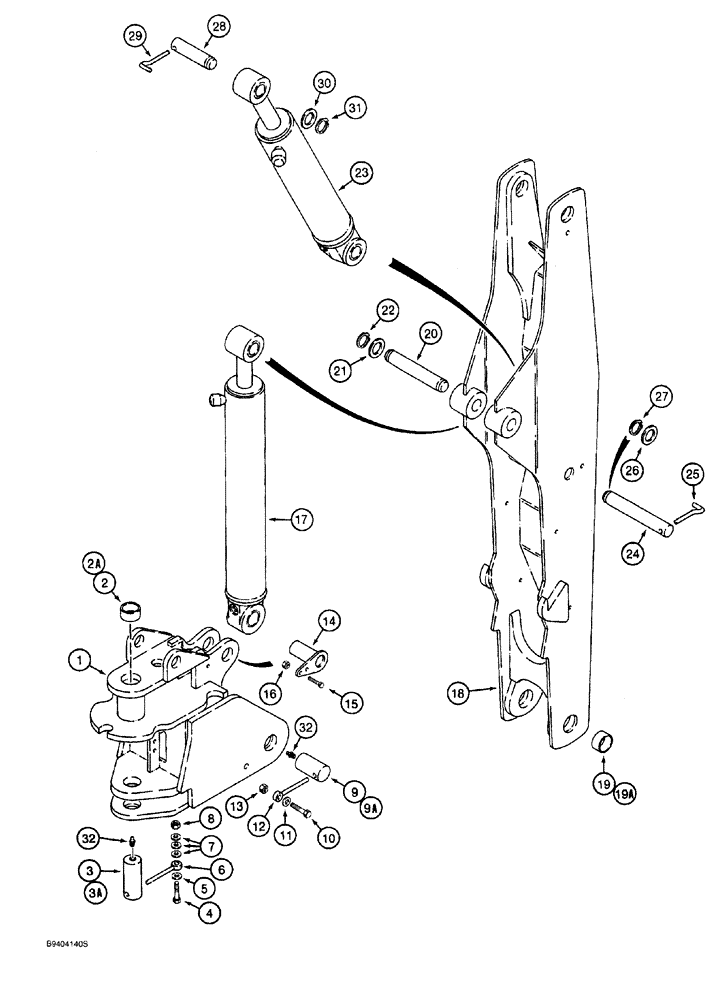

Запчасти Case 760 (09-034) - BACKHOE SWING TOWER AND BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

H672215

BOOM

TOWER swing, backhoe, no longer available, order 113171A1, (1) D33023 bushing and H437960 pin

1шт.

1

113171A1

CASING

TOWER swing, backhoe, replaces H672215

1шт.

2

H433644

BUSHING

Teflon fabric lined, swing tower, used with Ref. 3, H437191 pin

1шт.

See Fig. 9-26 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It's recommended all bushings be replaced at the same time

1шт.

2a

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

hardened steel, swing tower, used with Ref. 3A, H437959 pin

1шт.

3

H437191

PIN

swing tower to mounting frame, used with Ref. 2, H433644 Teflon fabric lined bushing

1шт.

See Fig. 9-26 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It's recommended all bushings be replaced at the same time

1шт.

3a

H437959

PIN

swing tower to mounting frame, used with Ref. 2A, D33023 hardened steel bushing

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

6

L109671

ROD

RETAINER pin

1шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

3шт.

8

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.

9

H437194

PIN

swing tower to boom, used with Ref. 19, H433623 Teflon fabric lined bushing

2шт.

See Fig. 9-26 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It's recommended all bushings be replaced at the same time

1шт.

9a

H437961

PIN

swing tower to boom, used with Ref. 19A, D38943 hardened steel bushing

2шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

12

L109671

ROD

RETAINER pin

2шт.

13

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.

14

H672354

PIN

boom cylinder to swing tower

1шт.

15

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

1шт.

16

232-4116

NUT,3/8"-16, GC

1шт.

17

H672568

CYLINDER

ASSEMBLY, 4 (102) ID x 24-1/2 inch (622 mm) stroke, parts list Fig. 8-70

1шт.

18

H672278

BOOM

backhoe, no longer available, order 113170A1 book and (2) H437961 pins

1шт.

18

113170A1

BOOM

backhoe, replaces H672278

1шт.

19

H433623

BUSHING

Teflon fabric lined, backhoe boom end, used with Ref. 9, H437914 pin

2шт.

See Fig. 9-26 for hardened steel bushings and hardened pins kit, 113324A1. This kit is available for customers who want to replace the Teflon fabric lined bushings. It's recommended all bushings be replaced at the same time

1шт.

19a

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

1-1/8 inch (28 mm) wide, backhoe boom end, used with Ref. 9A, H437961 pin

2шт.

20

H433739

PIN

boom, Serial Range: cylinder-boom

1шт.

21

H61028

WASHER

flat, special

1шт.

22

D25279

SNAP RING,M35, Int

boom cylinder pin retaining

2шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY, backhoe dipper, see Figs. 8-72 and 8-73A for correct assembly and components

1шт.

24

H433742

PIN

dipper, Serial Range: cylinder-boom

1шт.

25

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK

1шт.

26

H61028

WASHER

flat, special, used as shim

1шт.

27

D25279

SNAP RING,M35, Int

pin retaining

1шт.

28

H433743

PIN

dipper, Serial Range: cylinder-dipper

1шт.

29

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK

1шт.

30

H61028

WASHER

flat, special, used as shim

1шт.

31

D25279

SNAP RING,M35, Int

pin retaining

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.
