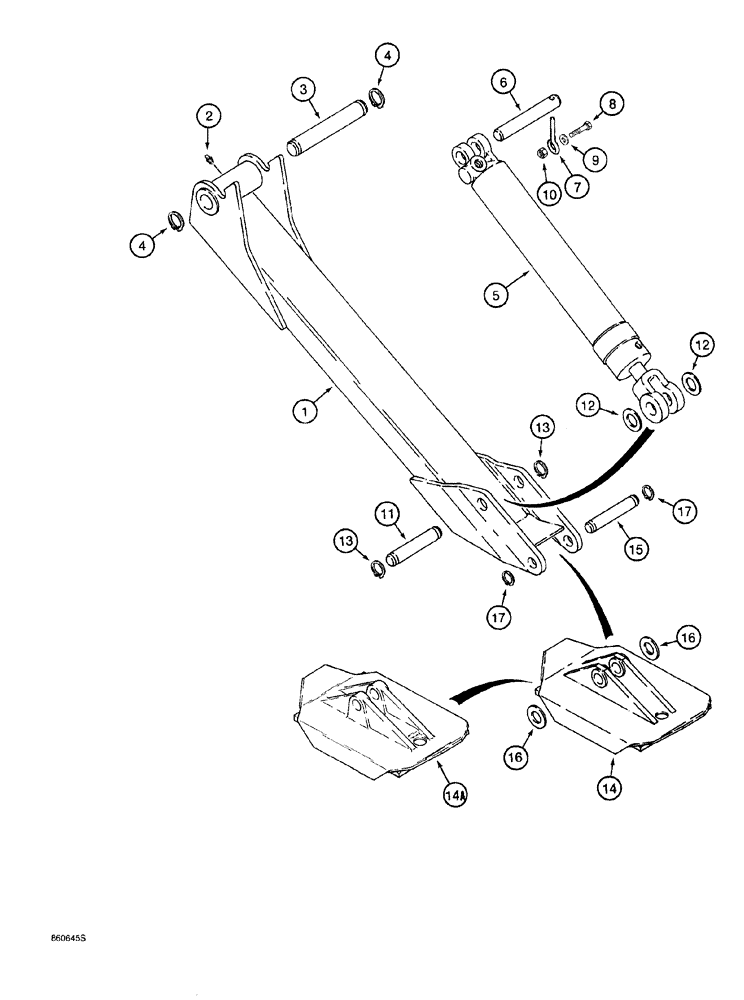

Запчасти Case 760 (09-032) - BACKHOE STABILIZERS (84) - BOOMS, DIPPERS & BUCKETS

1

H672227

STABILIZER

LEG, backhoe

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

3

H433739

PIN

stabilizer leg to backhoe mounting frame

2шт.

4

D25279

SNAP RING,M35, Int

stabilizer leg pin

4шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY, backhoe stabilizer, see Fig. 8-66 or 8-67A for correct assembly and components

2шт.

6

H433744

PIN

pivot, stabilizer cylinder to backhoe mounting frame

2шт.

7

H313981

PIN

PIN roll, 5/16 x 1-3/4 inch, included with swing tower locking pin

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

10

232-4116

NUT,3/8"-16, GC

2шт.

11

H434380

PIN

stabilizer cylinder rod end to stabilizer leg

2шт.

12

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

1шт.

13

103-16125

SNAP RING,#125, Ext

Cylinder to stabilizer leg pin

4шт.

14

H533646

LARGE PLATE

PLATE, LARGE stabilizer leg, fabricated, if used

2шт.

14a

H434430

LARGE PLATE

PLATE, LARGE PAD, stabilizer cast, if used

2шт.

15

H434379

PIN,28.63mm OD x 151mm L

stabilizer, Serial Range: leg-plate

2шт.

16

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

4шт.

17

100-16112

SNAP RING,#112, Ext

Stabilizer plate pin

4шт.
