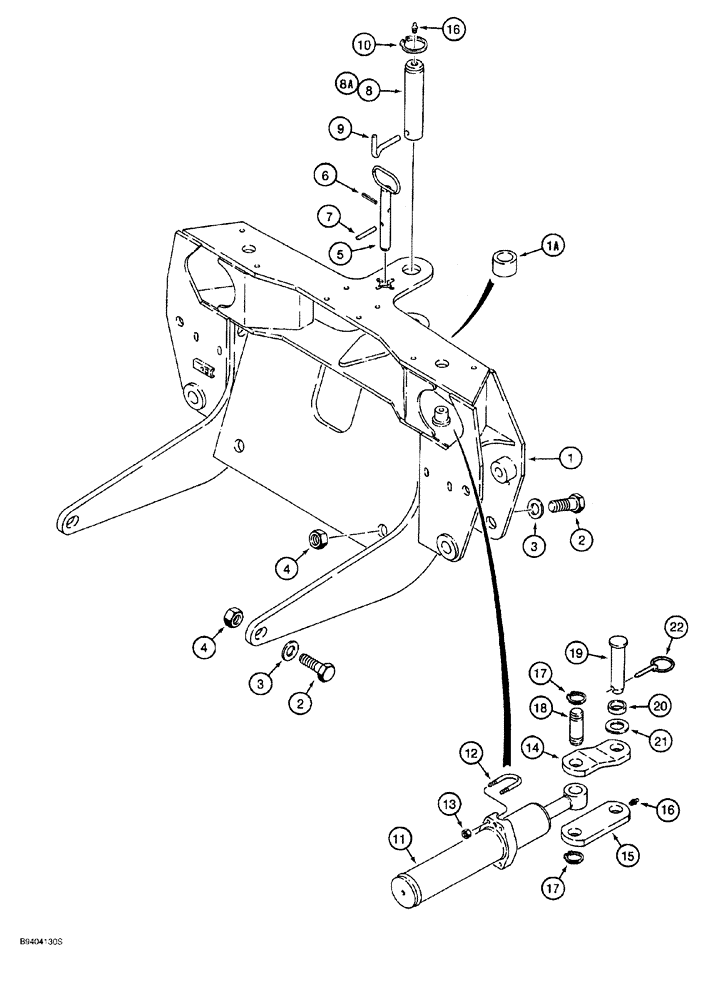

Запчасти Case 760 (09-030) - BACKHOE MOUNTING FRAME (84) - BOOMS, DIPPERS & BUCKETS

1

113174A1

FRAME

backhoe mounting, replaces H672240, Includes: Ref. 1A

1шт.

1a

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

hardened steel, bottom plate of frame

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

hex, 1-1/4 NC x 3-1/2 inch

4шт.

3

D43536

WASHER

flat, special, 1-1/4 inch

4шт.

4

230-41120

LOCK NUT,1 1/4"-7, GA

hex, self-locking, 1-1/4 inch NC

4шт.

5

H672507

PIN

locking, special, Includes: Ref. 6

1шт.

6

38-12028

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , included with swing tower locking pin 5/16" x 1 3/4", Slotted

1шт.

7

38-12044

LOCK PIN,5/16" x 2 3/4", Slotted

5/16" x 2 3/4", Slotted

1шт.

8

H437192

PIN

mounting frame to swing tower, upper, used with Teflon fabric lined bushing, Ref. 2, H433644 shown on Fig. 9-34

1шт.

Hardened steel bushings and hardened pins kit, this kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time

1шт.

8a

H437960

PIN

mounting frame to swing tower, upper, used with hardened steel bushing, Ref. 2A, D33023 shown on Fig. 9-34

1шт.

9

H433937

LARGE PIN,12.7mm OD

PIN, LARGE LOCK

1шт.

10

103-16200

SNAP RING,#200, Ext

Upper mounting frame pin

1шт.

11

H672571

CYLINDER ASSY.

3-1/4 (83) ID x 13-7/16 inch (341 mm) stroke, parts list Fig. 8-68

2шт.

12

H110270

HARDWARE

U-BOLT special, 5/16 inch NC

4шт.

13

232-4115

LOCK NUT,5/16"-18, GC

8шт.

14

H111583

DRAG LINK

offset

2шт.

15

H111575

LINK

straight

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

17

D25279

SNAP RING,M35, Int

swing cylinder pin

4шт.

18

H434262

PIN

swing, Serial Range: cylinder-link

2шт.

19

H76851

AXLE PIN

clevis, swing cylinder link to swing tower

2шт.

20

H434263

SPACER

link

2шт.

21

H61028

WASHER

flat, special, used as shim

1шт.

22

D33805

PIN

locking, link

2шт.

113324A1

KIT

hardened steel bushings and hardened pins, this kit is available for customers who want to replace the Teflon fabric lined bushings. It is recommended that all bushings be replaced at the same time, Includes: Ref. 23 - 29

1шт.

23

H437967

BUSHING

pivot, swing tower, not shown, hardened steel bushing and hardened pins kit

2шт.

24

H437968

BUSHING

pivot, dipper, not shown, hardened steel bushing and hardened pins kit

1шт.

25

H437969

BUSHING

pivot, boom, not shown, hardened steel bushing and hardened pins kit

2шт.

26

H437959

PIN

pivot, swing tower to mounting frame, lower, not shown, hardened steel bushing and hardened pins kit

1шт.

27

H437960

PIN

pivot, mounting frame to swing tower, upper, not shown, hardened steel bushing and hardened pins kit

1шт.

28

H437961

PIN

pivot, swing tower to boom, not shown, hardened steel bushing and hardened pins kit

2шт.

29

H437962

PIN

pivot, dipper to boom, not shown, hardened steel bushing and hardened pins kit

1шт.
