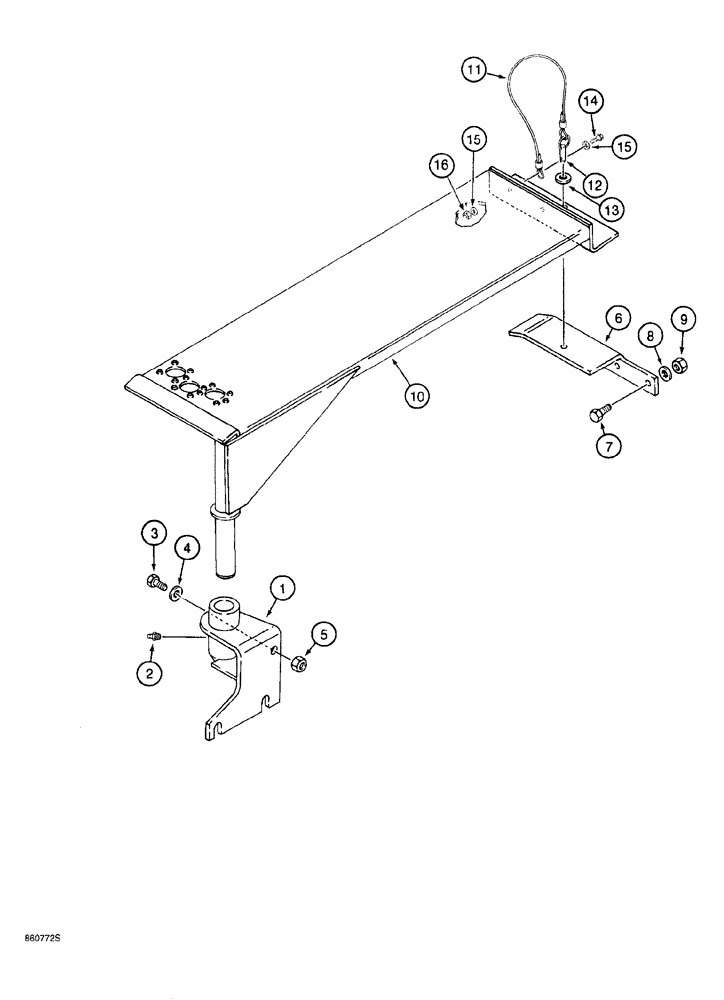

Запчасти Case 760 (09-028) - BACKHOE WALKWAY (84) - BOOMS, DIPPERS & BUCKETS

1

H673206

BRACKET

walkway mounting

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

3шт.

5

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

3шт.

6

H434330

ANGLE

SUPPORT walkway

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

9

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.

10

H673208

WALKWAY

CATWALK WAY backhoe

1шт.

11

L78786

CABLE RETAINER

walkway pin

1шт.

12

D94535

PIN,9.52mm OD

locking, walkway

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

16

230-4216

LOCK NUT,3/8"-16, GA

1шт.
