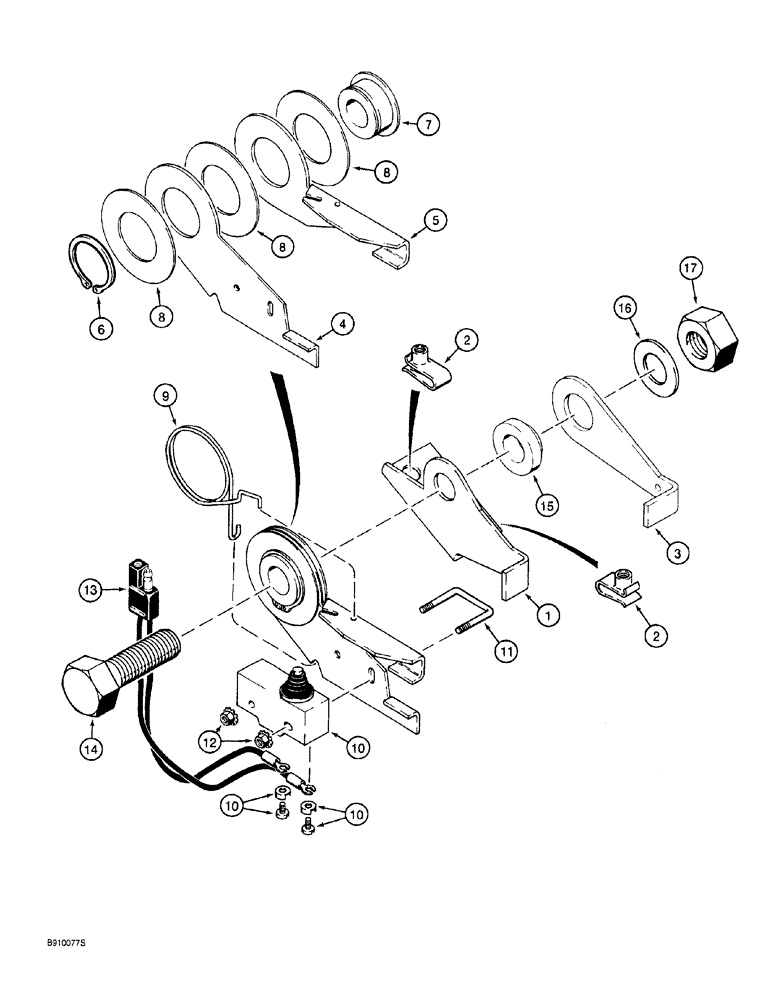

Запчасти Case 760 (09-044) - NEUTRAL START SWITCH ASSEMBLY (55) - ELECTRICAL SYSTEMS

H673443

SWITCH

ASSEMBLY, neutral start, Includes: Ref. 1 - 17

2шт.

1

H436228

PLATE

BRACKET switch, Serial Range: mounting-console

1шт.

2

H346650

NUT

U-type, 5/16 inch NC, special

2шт.

3

H436229

LARGE PLATE

PLATE, LARGE actuator

1шт.

H673263

MOUNTING PARTS

ASSEMBLY, switch, Includes: Ref. 4 - 8

1шт.

4

H436227

PLATE

switch mounting

1шт.

5

H436226

CONTACT PLATE

PLATE, LARGE switch contact

1шт.

6

103-11125

SNAP RING,#125, Ext

Hub, replaces F62020

1шт.

7

131050A1

HUB

switch contact plate, replaces H435800

1шт.

8

H257915

SHIM,0.813mm Thk

(.031")

3шт.

9

H436231

SPRING

switch contact plate

1шт.

10

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

11

H435814

U-BOLT

switch mounting

1шт.

12

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

13

H436183

CONNECTOR, ELEC

CONNECTOR WIRE, Serial Range: switch-harness

1шт.

14

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

15

H435881

HUB

SPACER actuator plate

1шт.

16

495-11081

WASHER,3/4", SAE

1шт.

17

232-41112

NUT,3/4"-10, GC

1шт.
