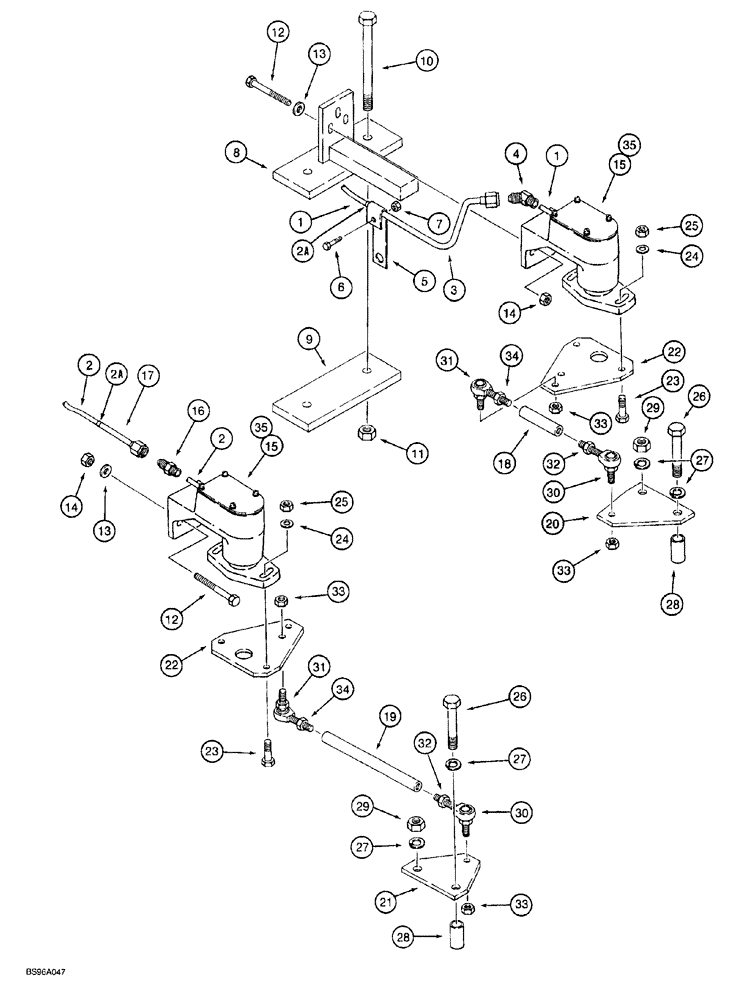

Запчасти Case 760 (04-042) - STEERING ELECTRICAL CIRCUIT, HARNESSES TO SENSORS (55) - ELECTRICAL SYSTEMS

1

H433708

HARNESS

wiring, front steering sensor

1шт.

2

H433709

HARNESS

wiring, rear steering sensor

1шт.

2a

A161375

SLEEVE

shrink, sensor harness

2шт.

3

H672263

TUBE,12.7 mm OD x 185, 75 mm L

front steering harness to sensor assembly

1шт.

4

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

ELBOW, 45 degree, 3/4-16 flare x 3/8 inch PT

1шт.

5

H433645

CLAMP

tube

1шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

7

230-4214

LOCK NUT,1/4"-20, GA

1шт.

8

H672117

GUIDE

BRACKET sensor mounting, upper

1шт.

9

H433409

GUIDE

BRACKET sensor mounting, lower

1шт.

10

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

2шт.

11

232-41110

NUT,5/8"-11, GC

2шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

14

232-4116

NUT,3/8"-16, GC

6шт.

15

H672380

SENSOR

ASSEMBLY, steering, front and rear, parts list Fig. 4-044, no longer available, order Ref. 35, H673284

2шт.

16

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

17

H672272

TUBE,12.7 mm OD x 100 mm L

rear steering harness to sensor assembly

1шт.

18

H433970

STEM

ROD front steering sensor

1шт.

19

H433971

STEM

ROD rear steering sensor

1шт.

20

H433861

ARM

front steering

1шт.

21

H433862

ARM

rear steering

1шт.

22

H433860

ARM

front and rear steering sensors

2шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

25

230-4216

LOCK NUT,3/8"-16, GA

4шт.

26

814-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

2шт.

27

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

4шт.

28

H357764

SPACER

front and rear steering arms

2шт.

29

525-5105

NUT,M14 x 1.5, Cl 8

goes on existing stud in axle assembly

2шт.

30

R47941

JOINT TURNING

ball, male, 3/8 inch NF, steering arm

2шт.

31

H433969

JOINT TURNING

ball, left-hand threads, steering sensor arm

2шт.

32

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

33

232-4616

LOCK NUT,3/8"-24, GC

4шт.

34

125-11011

NUT,3/8"-24, G5, LH

2шт.

35

H673284

SENSOR

ASSEMBLY, steering, front and rear, Includes: Ref. 36

2шт.

36

H672504

POTENTIOMETER, steering sensor, not shown separately

1шт.
