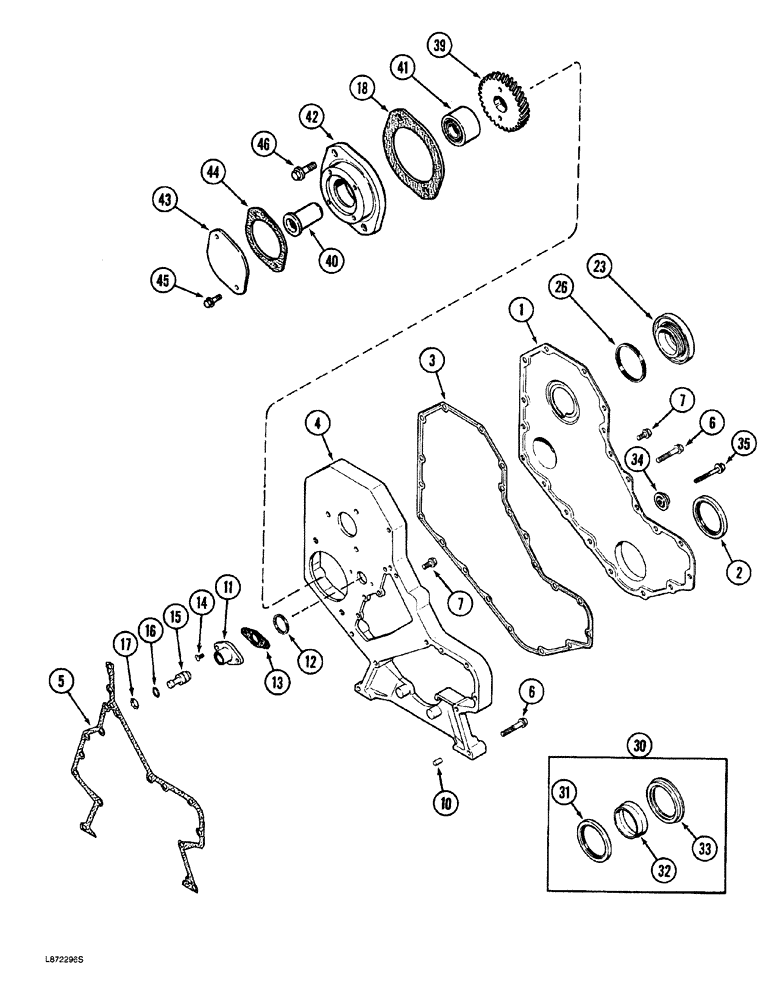

Запчасти Case 760 (02-018) - FRONT GEAR COVER, 4-390 ENGINE (10) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order item 30, J904353 kit

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear, replaces J910411 and J917759

1шт.

5

J916131

GASKET

gear housing, replaces J914384

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

11

J905933

HOUSING

timing pin, replaces J903923

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing, replaces J914092

1шт.

13

J905595

GASKET

timing pin housing

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

16

J913994

O-RING

sealing, replaces J903927

1шт.

17

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

18

J919601

GASKET

access cover plate, replaces J913192

1шт.

23

J903463

PLUG,M63 x 5

front access

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

30

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

34

J912772

RETAINER

bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

Heavy

1шт.

39

J902595

GEAR

drive

1шт.

40

J912205

SHAFT

accessory drive, replaces J910650

1шт.

41

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

pump roller

1шт.

42

J923239

FLANGE

ADAPTER hydraulic pump, replaces J903917 and J916146

1шт.

43

A77509

PLATE

cover

1шт.

44

A77507

GASKET

, Serial Range: cover-adapter

1шт.

45

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

46

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 35 mm, class 10.9

2шт.
