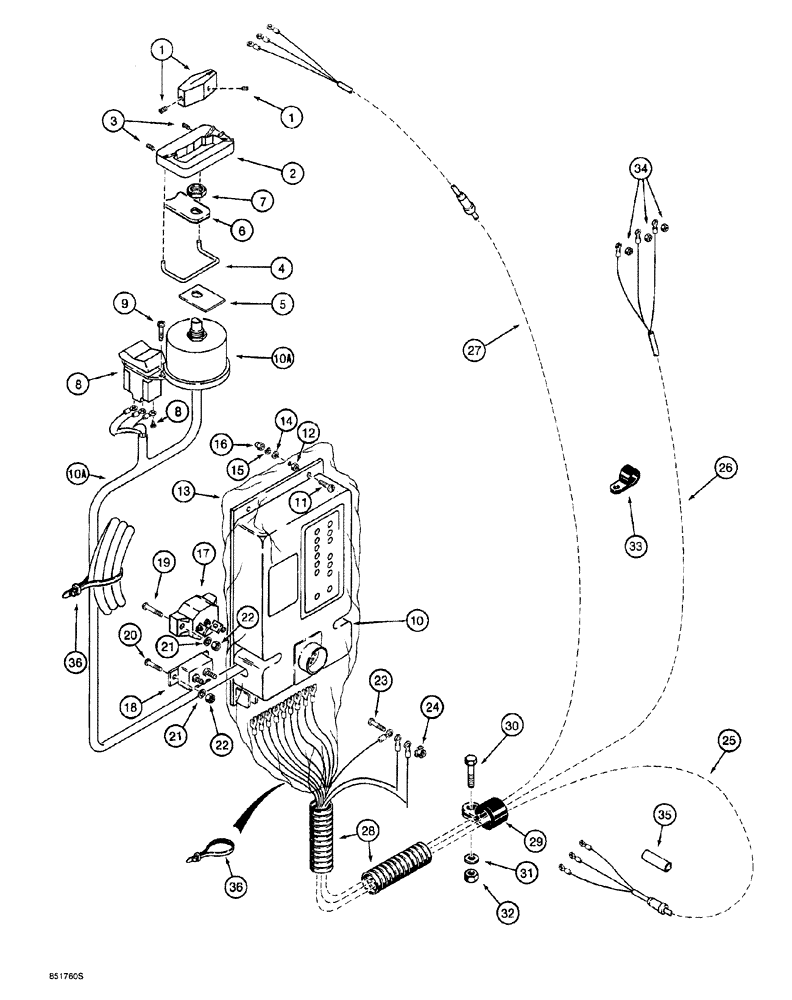

Запчасти Case 760 (04-040) - STEERING ELECTRICAL CIRCUIT, SWITCHES TO HARNESSES (55) - ELECTRICAL SYSTEMS

1

A160272

KNOB

steering selector, includes set screws

1шт.

2

A162250

KNOB

LIMITER switch

1шт.

3

83-1064

SET SCREW,Hex Soc, #6-32 x 1/4"

set, hex socket headless, No. 6 NC x 1/4 inch, cup point

2шт.

4

A160502

ELECTRICAL WIRE

WIRE stop

1шт.

5

A160501

SPRING

plate, selector knob

1шт.

6

A162042

PLATE

STRAP switch retaining

1шт.

7

H436584

SPECIAL NUT

hex, special

1шт.

8

H435273

SWITCH

rocker, rear steering control, includes terminal screws

1шт.

9

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

H673283

TESTER

CONTROLLER ASSEMBLY, steering, enhanced, Includes: Ref. 10 and 10A

1шт.

10

NSS

NOT SOLD SEPARAT

CONTROLLER steering

1шт.

10a

H673563

SWITCH

HARNESS, selector, steering controller

1шт.

11

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

machine, pan head slotted, No. 8 NC x 1/2 inch

4шт.

12

225-14108

NUT,#8-32

hex, No. 8 NC

4шт.

13

352-29

PROMOTIONAL BAG

SPARE PART COVER plastic, 10 (254) x 16 inch (406 mm), do not remove from steering controller

1шт.

14

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

flat, 3/16 x 3/8 x 3/64 inch

1шт.

15

492-11008

LOCK WASHER,#8

4шт.

16

129-889

CROWN NUT,Crown, #8-32

dome, No. 8 NC

4шт.

17

S117267

BREAKER

circuit, 3 ampere

1шт.

18

L104329

BREAKER

circuit, 15 amp, replaces D37203 circuit breaker

1шт.

19

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

20

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

2шт.

21

492-11010

LOCK WASHER,#10

4шт.

22

225-14110

NUT,#10-24

4шт.

23

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

1шт.

24

193-1003

NUT,Keps, w/LW,#6-32

External tooth

1шт.

25

H433709

HARNESS

wiring, rear steering sensor

1шт.

26

H433710

HARNESS

wiring, steering valve

1шт.

27

H433708

HARNESS

wiring, front steering sensor

1шт.

28

R40777

CONDUIT

8 inch (203 mm) long, cut from R44806 bulk, see below

1шт.

29

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID, if used

1шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

32

232-4116

NUT,3/8"-16, GC

1шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Use existing hardware

1шт.

34

225-14108

NUT,#8-32

hex, No. 8 NC

3шт.

35

A161375

SLEEVE

shrink, sensor harness

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, plastic cover and controller

2шт.

R44806

LOOM

CONDUIT bulk, 88-1/2 inch (2248 mm) long

1шт.
