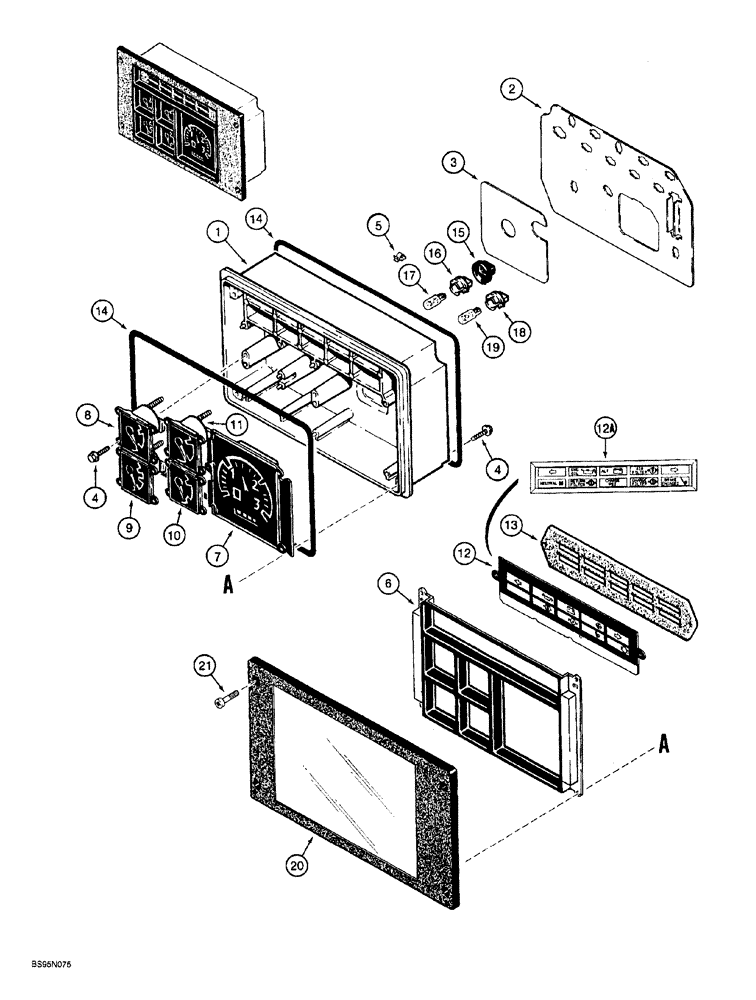

Запчасти Case 760 (04-036) - INSTRUMENT CLUSTER, USED WITH BOSCH ALTERNATOR (55) - ELECTRICAL SYSTEMS

A187966

CLUSTER

ASSEMBLY, instrument, 12 volt, Isspro Inc. manufactured, identified by A187966 part number on side of housing, no longer available, order 141759A1, Includes: Ref. 1 - 20

1шт.

141759A1

CLUSTER

ASSEMBLY, instrument, 12 volt, Isspro Inc. manufactured, identified by 141759A1 part number on side of housing, Includes: Ref. 1 - 20

1шт.

A191114

HOUSING

ASSEMBLY, instrument cluster, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, instrument cluster

1шт.

2

NSS

NOT SOLD SEPARAT

CIRCUIT, printed, instrument cluster

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET housing

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW special

12шт.

5

NSS

NOT SOLD SEPARAT

CLIP, gauges

12шт.

6

A45007

LENS

COVER, instrument cluster, replaces N14227

1шт.

7

N13543

TACHOMETER

tachometer, includes hourmeter

1шт.

8

N13542

GAUGE

water temperature

1шт.

9

A47688

ELECTRICAL GAUGE

fuel level

1шт.

10

N6807

ELECTRICAL GAUGE

voltmeter

1шт.

11

A187987

GAUGE

hydraulic oil temperature

1шт.

12

N13544

LENS

identification, warning lamps, used on A187966 cluster, no longer available, order Ref. 12A, 141760A1

1шт.

12a

141760A1

LENS

identification, warning lamps

1шт.

13

D71342

GASKET,3.05mm Thk

lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

15

D71344

COVER

BOOT rubber

3шт.

16

A47125

PEDESTAL

SOCKET, lamp, green

3шт.

17

W10478

LAMP

No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

lamp, blue

9шт.

19

D71346

TAIL LAMP,12V

lamp, No. 168

9шт.

20

N14225

SHIELD

instrument cluster

1шт.

21

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.
