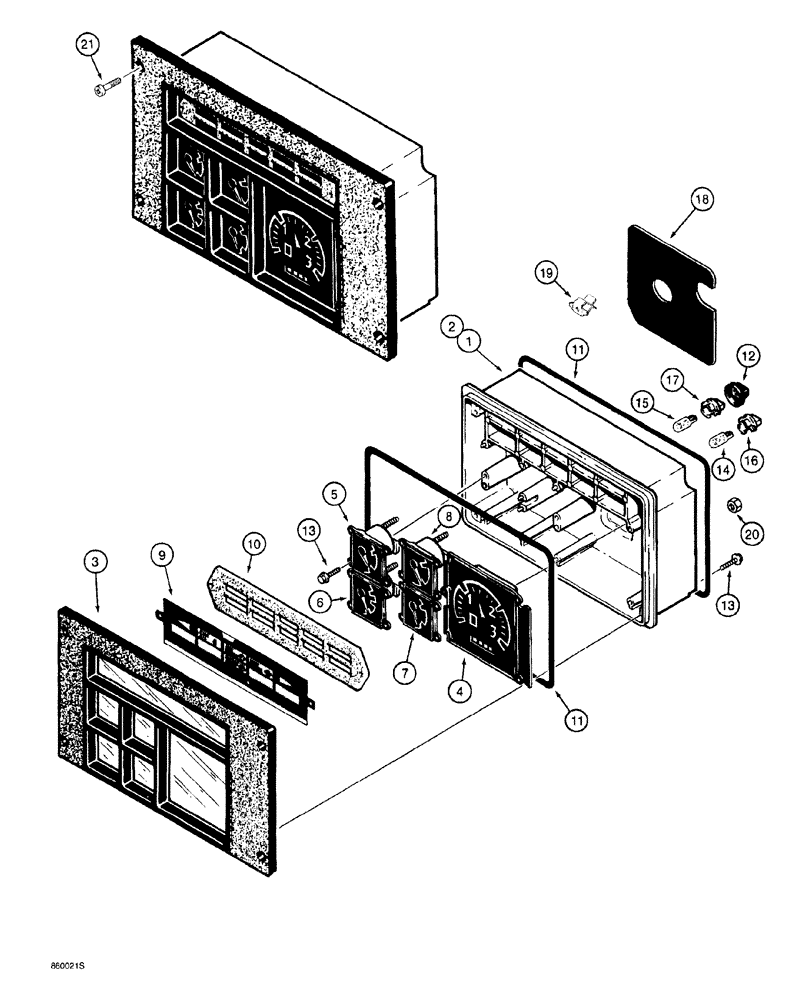

Запчасти Case 760 (04-032) - INSTRUMENT CLUSTER, USED WITH DELCO REMY ALTERNATOR (55) - ELECTRICAL SYSTEMS

H672089

CLUSTER

instrument, 12 volt, AC spark plug No. 25080217, Includes: Ref. 1 - 20

1шт.

1

N13545

INSTRUMENT PANEL

instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

IT instrument cluster, not shown

1шт.

3

A45007

LENS

COVER instrument cluster, replaces D71334

1шт.

4

N13963

TACHOMETER

GAUGE, includes hourmeter

1шт.

5

N13542

GAUGE

water temperature

1шт.

6

A47688

ELECTRICAL GAUGE

fuel level

1шт.

7

N6807

ELECTRICAL GAUGE

voltmeter

1шт.

8

N13546

GAUGE

oil temperature

1шт.

9

N13544

LENS

identification, warning lamps, no longer available, order 141760A1, Ref. 12A, shown on Fig. 4-036

1шт.

10

D71342

GASKET,3.05mm Thk

lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

12

D71344

COVER

BOOT rubber

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

special

12шт.

14

D71346

TAIL LAMP,12V

lamp, No. 168

8шт.

15

W10478

LAMP

No. 194

3шт.

16

A47123

SOCKET/RECEPTACLE

lamp, blue

8шт.

17

A47125

PEDESTAL

SOCKET lamp, green

3шт.

18

H422758

GASKET,1.52mm Thk

housing

1шт.

19

H422766

CLIP, SPRING

gauges

12шт.

20

225-14106

NUT,#6-32

3шт.

21

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.
