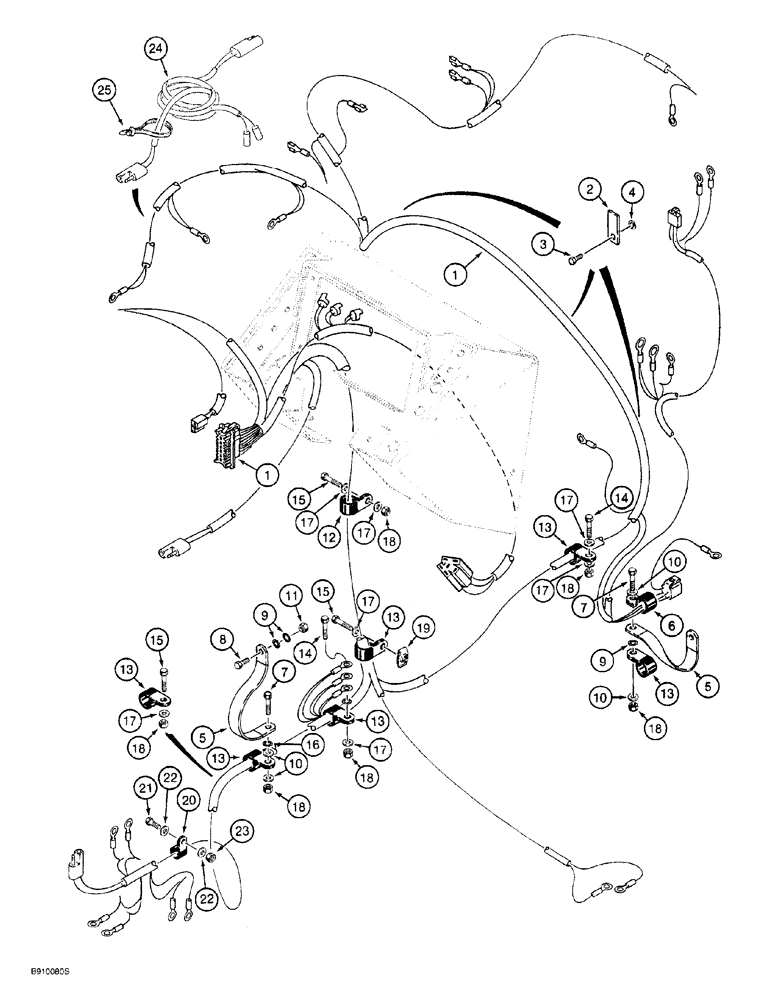

Запчасти Case 760 (04-030) - MAIN WIRING HARNESS, CLAMPS & GROUND STRAPS, MDLS W/O ELEC. STEERING, UNITS W/P.I.N. JAF0022965 &AFT (55) - ELECTRICAL SYSTEMS

1

H436184

HARNESS

main, see Fig. 4-028 for main wiring harness and electrical components

1шт.

2

A37179

CLIP

P-type

3шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

D73383

STRAP

ground, 13 inch (330 mm) long

2шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

493-41039

LOCK WASHER,Ext Tooth, 3/8"

3шт.

10

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

11

232-4116

NUT,3/8"-16, GC

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

13

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID

6шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

3шт.

16

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

17

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

7шт.

18

232-4115

LOCK NUT,5/16"-18, GC

6шт.

19

H346650

NUT

U-type, 5/16 inch NC

1шт.

20

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, at right-hand console

1шт.

Parts are also components of H673628 neutral start kit, which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31-37 on Fig. 6-002, 6A & Refs. 29-35 on Fig. 9-042 & instruction sheet 8-76511

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

Parts are also components of H673628 neutral start kit, which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31-37 on Fig. 6-002, 6A & Refs. 29-35 on Fig. 9-042 & instruction sheet 8-76511

1шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

Parts are also components of H673628 neutral start kit, which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31-37 on Fig. 6-002, 6A & Refs. 29-35 on Fig. 9-042 & instruction sheet 8-76511

1шт.

23

232-4115

LOCK NUT,5/16"-18, GC

1шт.

Parts are also components of H673628 neutral start kit, which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31-37 on Fig. 6-002, 6A & Refs. 29-35 on Fig. 9-042 & instruction sheet 8-76511

1шт.

24

H435833

HARNESS

neutral start, only required if unit has been modified with neutral start relocation kit

1шт.

Parts are also components of H673628 neutral start kit, which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31-37 on Fig. 6-002, 6A & Refs. 29-35 on Fig. 9-042 & instruction sheet 8-76511

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining, used with H435833 harness only

10шт.

Parts are also components of H673628 neutral start kit, which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31-37 on Fig. 6-002, 6A & Refs. 29-35 on Fig. 9-042 & instruction sheet 8-76511

1шт.
