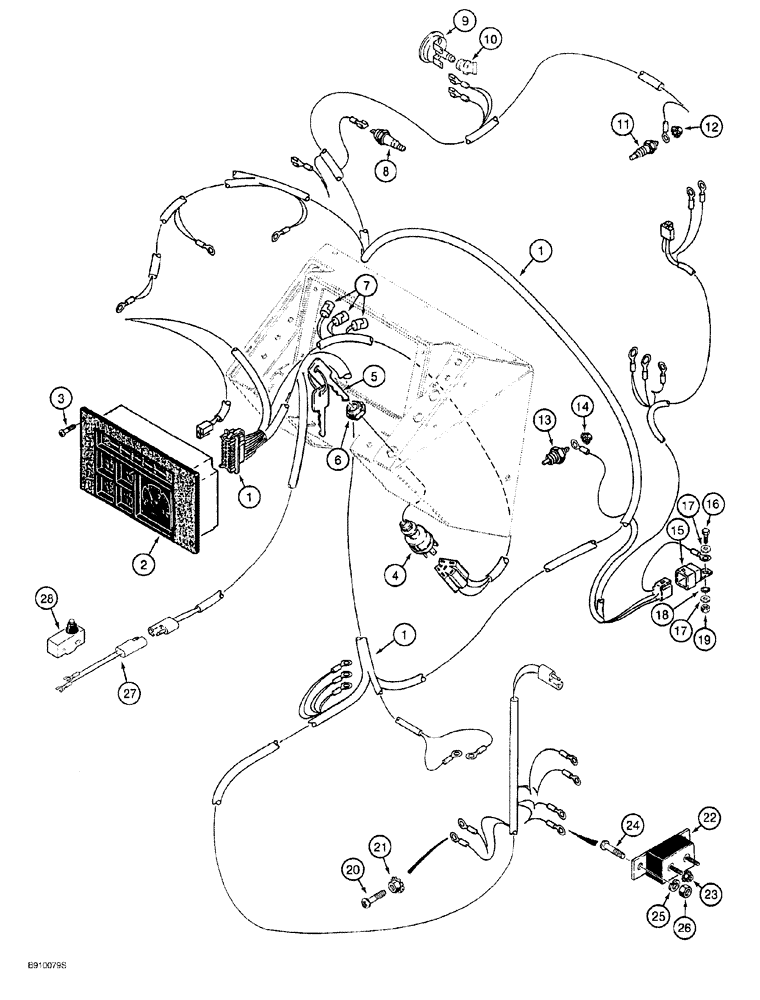

Запчасти Case 760 (04-028) - MAIN WIRING HARNESS, ELECTRICAL COMPONENTS & CONNECTIONS, MODELS WITHOUT ELECTRONIC STEERING (55) - ELECTRICAL SYSTEMS

1

H436184

HARNESS

main

1шт.

2

A187966

CLUSTER

ASSEMBLY, instrument, 12 volt, used on models with Bosch alternator, parts list Fig. 4-036

1шт.

3

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY, ignition, includes keys, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH ignition, without keys

1шт.

5

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

6

A77314

NUT

hex, special

1шт.

7

L71879

DIODE ELEMENT,400V, 3A

harness

3шт.

8

A162297

SWITCH

SENDER engine oil pressure

1шт.

9

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

10

221-1401

ELBOW,45º, 1/8"-27, NPT

ELBOW, street, 45 degree, 1/8 inch PT

1шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

water temperature

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

13

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

hydraulic oil temperature

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

15

139026A1

RELAY

30 amp, starter

1шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

18

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

19

232-4114

LOCK NUT,1/4"-20, GC

1шт.

20

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

1шт.

21

193-1003

NUT,Keps, w/LW,#6-32

External tooth

1шт.

22

L104329

BREAKER

circuit, 15 amp, replaces D37203

1шт.

23

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

2шт.

24

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

25

492-11008

LOCK WASHER,#8

2шт.

26

225-14108

NUT,#8-32

hex, No. 8 NC

2шт.

27

H436183

CONNECTOR, ELEC

CONNECTOR WIRE, Serial Range: switch-harness

2шт.

These are components of H673443 neutral start switch assy. Fig. 9-44. See Figs 6-2 & 9-42 for location of the switches in the ground drive & attachments speed controls

1шт.

28

H435820

SWITCH

neutral start, includes terminal hardware

2шт.

These are components of H673443 neutral start switch assy. Fig. 9-44. See Figs 6-2 & 9-42 for location of the switches in the ground drive & attachments speed controls

1шт.
