(04-026) - MAIN WIRING HARNESS, CLAMPS & GROUND STRAPS, MODELS W/O ELEC. STEERING, PRIOR TO P.I.N. JAF0022965

Запчасти Case 760 (04-026) - MAIN WIRING HARNESS, CLAMPS & GROUND STRAPS, MODELS W/O ELEC. STEERING, PRIOR TO P.I.N. JAF0022965 (55) - ELECTRICAL SYSTEMS

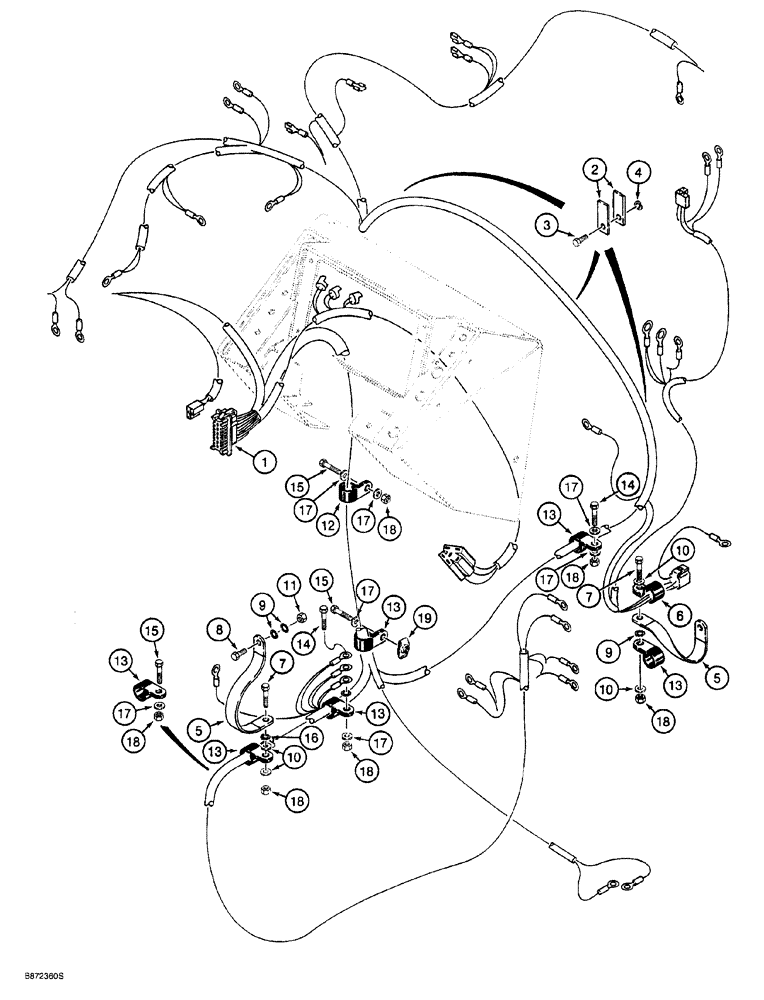

Схема запчастей Case 760 - (04-026) - MAIN WIRING HARNESS, CLAMPS & GROUND STRAPS, MODELS W/O ELEC. STEERING, PRIOR TO P.I.N. JAF0022965 (55) - ELECTRICAL SYSTEMS
17
3
13
17
17
8
10
18
5
13
15
13
10
11
10
2
15
1
13
18
19
5
13
9
12
18
14
4
14
15
7
7
6
18
13
17
17
9
16
18
18
17
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H434647

HARNESS

mam, see Fig. 4-024 for main wiring harness connections to electrical components

1шт.

2

A37179

CLIP

P-type

6шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

D73383

STRAP

ground, 13 inch (330 mm) long

2шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

493-41039

LOCK WASHER,Ext Tooth, 3/8"

3шт.

10

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

11

232-4116

NUT,3/8"-16, GC

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

13

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID

6шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

3шт.

16

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

17

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

7шт.

18

232-4115

LOCK NUT,5/16"-18, GC

6шт.

19

H346650

NUT

U-type, 5/16 inch NC

1шт.
