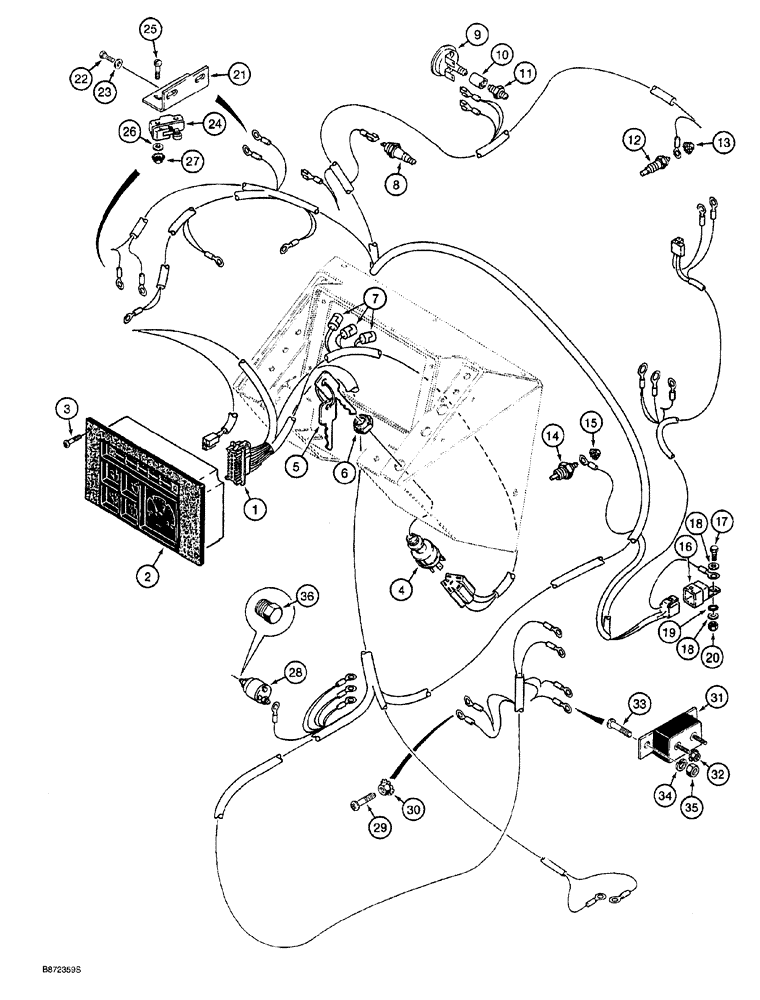

Запчасти Case 760 (04-024) - MAIN WIRING HARNESS, ELECTRICAL COMPONENTS AND CONNECTIONS, MODELS WITHOUT ELECTRONIC STEERING, (55) - ELECTRICAL SYSTEMS

1

H434647

HARNESS

main

1шт.

2

H672089

CLUSTER

instrument, 12 volt, used on models with Delco Remy alternator, parts list Fig. 4-032

1шт.

2

REF

INSTRUCTION

CLUSTER instrument, 12 volt, used on models with Bosch alternator, see Figs. 4-032 and 4-034 for correct assembly and components

1шт.

3

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY, ignition, includes keys, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

5

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

6

A77314

NUT

hex, special, key switch mounting

1шт.

7

L71879

DIODE ELEMENT,400V, 3A

harness

3шт.

8

A162297

SWITCH

SENDER engine oil pressure

1шт.

9

L103131

INDICATOR

SENDER air filter restriction indicator

1шт.

10

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

11

D36264

FITTING

air restriction indicator

1шт.

12

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

water temperature

1шт.

13

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

14

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

hydraulic oil temperature

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

16

139026A1

RELAY

30 amp, starter

1шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

19

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

20

230-4214

LOCK NUT,1/4"-20, GA

1шт.

21

H434467

ANGLE

BRACKET neutral start switch mounting

2шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

24

D134622

SWITCH

neutral start, replaces D133918

2шт.

25

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

26

495-31016

WASHER,#6

4шт.

27

193-1003

NUT,Keps, w/LW,#6-32

External tooth

4шт.

28

H436247

SWITCH, PRESSURE

PRESSURE SWITCH charge, pump, replaces D123864, no longer used, replace with Ref. 36 plug

1шт.

29

140-101

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

1шт.

30

193-1003

NUT,Keps, w/LW,#6-32

External tooth

1шт.

31

L104329

BREAKER

circuit, 15 amp, replaces D37203

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

2шт.

33

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

34

492-11008

LOCK WASHER,#8

2шт.

35

225-14108

NUT,#8-32

hex, No. 8 NC

2шт.

36

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

37

1983394C2

RELAY

electrical, 12 volt, pump charge pressure, replaces S513724 relay, no longer used, disconnect from wiring harness on models so equipped, not shown

1шт.

22

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Included with tandem pump assembly

4шт.
