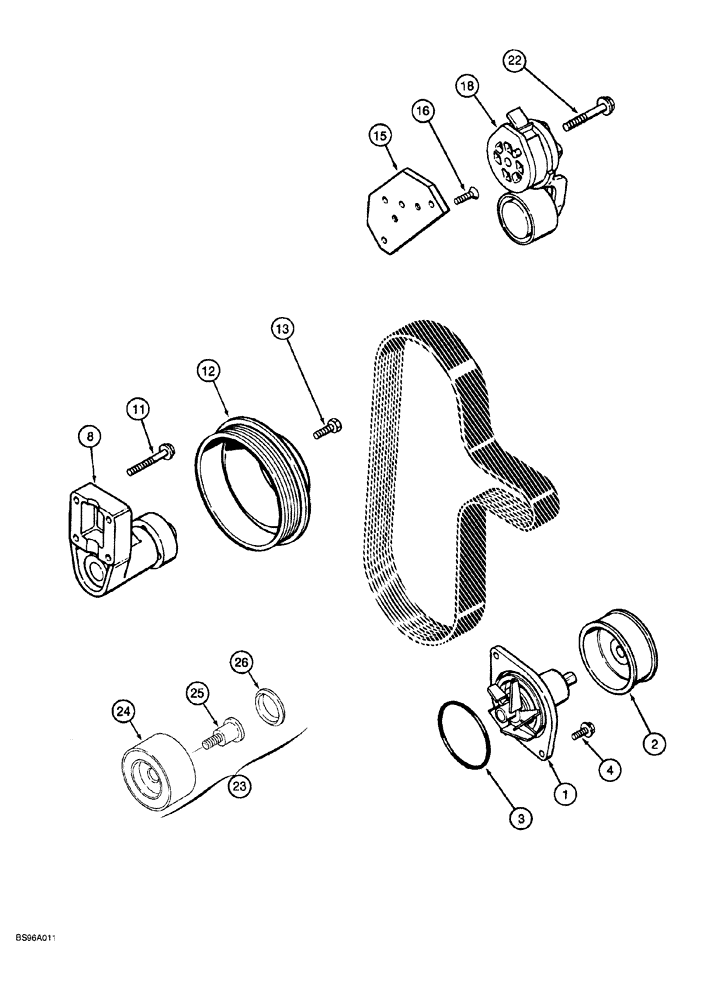

Запчасти Case 760 (02-016) - WATER PUMP SYSTEM, 4-390 ENGINE (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

PUMP water, Includes: Ref. 1 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1)

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J909888

SUPPORT

bracket, fan, replaces J911203

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914463

PULLEY,165.25mm OD

fan

1шт.

13

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

15

J925207

SUPPORT

BRACKET belt tensioner, replaces J904548

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, hex socket, special

2шт.

18

J918944

BELT TENSIONER

belt, replaces J912246

1шт.

22

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

23

A77817

KIT

KIT belt tensioner pulley, used to replace pulley of J918944, Ref. 18, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
