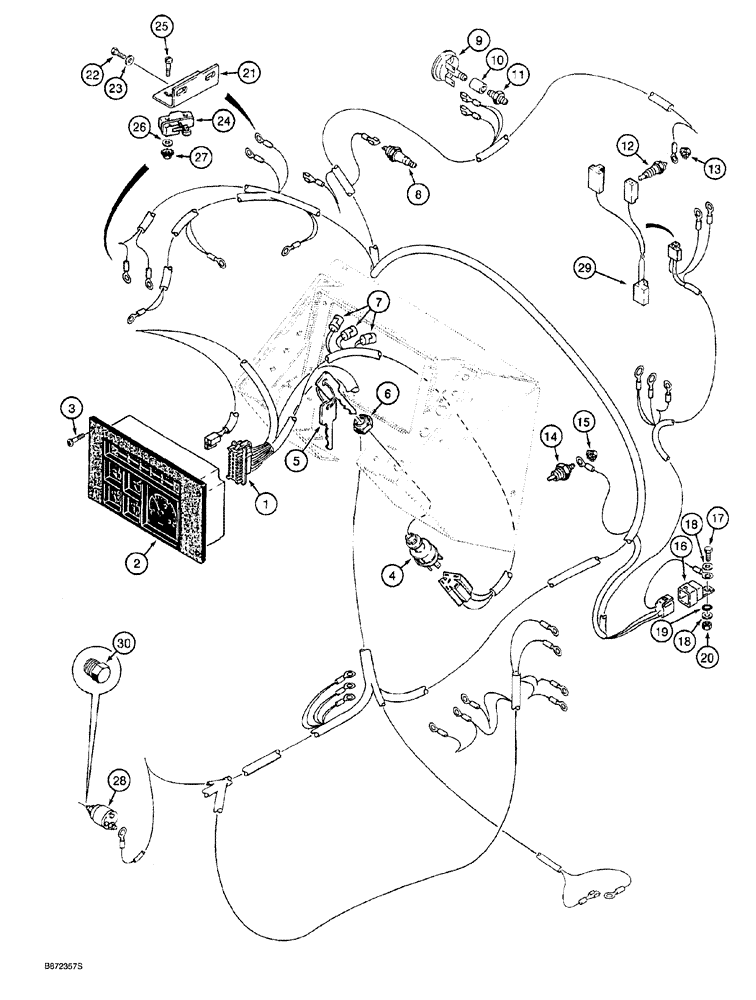

Запчасти Case 760 (04-020) - MAIN WIRING HARNESS ELEC. COMPONENTS & CONNECTIONS MDLS W/ ELEC. STEERING, PRIOR TO P.I.N.JAF0022965 (55) - ELECTRICAL SYSTEMS

1

H433613

HARNESS

main, used on models with Delco Remy alternator

1шт.

To use Bosch alt on models originally equipped w/Delco Remy alt & H433613, main harness, order A186122 adapter wire, Ref. 29

1шт.

1

H434518

HARNESS

main, used on models with Bosch alternator, no longer available, order H434647 wiring harness, not shown

1шт.

1

H434647

HARNESS

main, used on models with Bosch alternator, not shown, see Fig. 4-24

1шт.

2

H672089

CLUSTER

instrument, 12 volt, used on models with Delco Remy alternator, parts list Fig. 4-32

1шт.

2

REF

INSTRUCTION

CLUSTER instrument, 12 volt, used on models with Bosch alternator, for correct assembly and components see Figs 4-34 & 4-36

1шт.

3

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY, ignition, includes keys, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

5

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

6

A77314

NUT

hex, special, key switch mounting

1шт.

7

L71879

DIODE ELEMENT,400V, 3A

harness

3шт.

8

A162297

SWITCH

SENDER engine oil pressure

1шт.

9

L103131

INDICATOR

SENDER air filter restriction indicator

1шт.

10

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

11

D36264

FITTING

air restriction indicator

1шт.

12

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

water temperature

1шт.

13

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

14

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

hydraulic oil temperature

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

16

139026A1

RELAY

30 amp, starter

1шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

19

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

20

230-4214

LOCK NUT,1/4"-20, GA

1шт.

21

H434467

ANGLE

BRACKET neutral start switch mounting

2шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

24

D134622

SWITCH

neutral start, replaces D133918

2шт.

25

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

26

495-31016

WASHER,#6

4шт.

27

193-1003

NUT,Keps, w/LW,#6-32

External tooth

4шт.

28

H436247

SWITCH, PRESSURE

PRESSURE SWITCH charge pressure, replaces D123864 switch, no longer used, order Ref. 30 plug

1шт.

29

A186122

ELECTRICAL WIRE

WIRE adapter, used to connect Bosch alternator to H433613 main harness

1шт.

To use Bosch alt on models originally equip w/Delco Remy alt & H433613 main harness, order A186122 adapter wire, Ref. 29

1шт.

30

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

31

1983394C2

RELAY

electrical, 12 volt, pump charge pressure, replaces S513724, no longer used, disconnect from wiring harness on models so equipped not shown

1шт.

22

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Included with tandem pump assembly

4шт.
